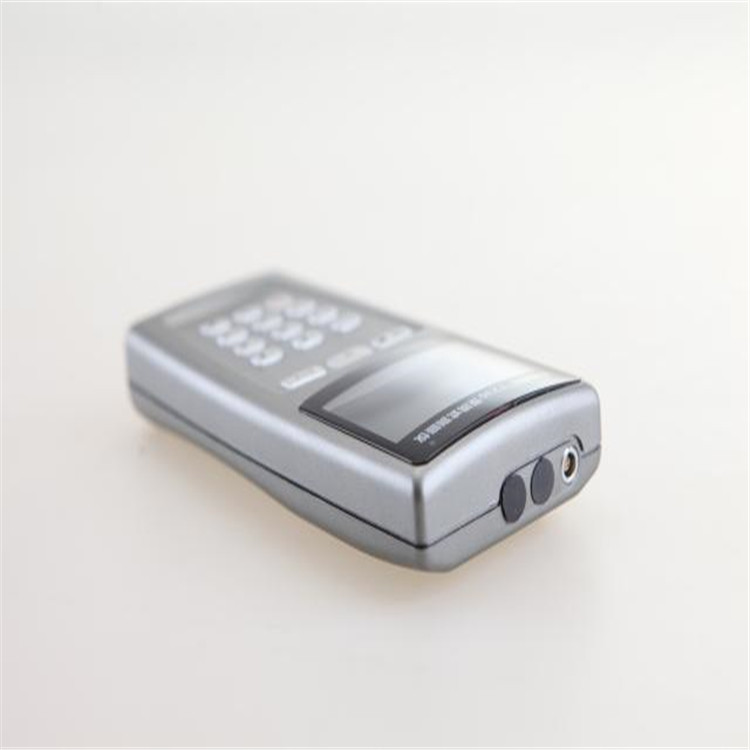

TIME7230 Portable Vibration Meter
Features
● Two display modes: digital value mode and spectrum mode
● Large memory function: 100 x 100 measured results (100 testing points, 100 data can be stored in each testing points), 100 spectrograms (each testing point can store one spectrogram)
● Spectrogram can display in real time
● Histogram can be made according to the preset alarm line
● Upper /lower limits pre-setting and sound alarm if test results out of limitation, which leads to spectrum analysis mode automatically
● Connected to PC with advanced software for more analysis needs
● Integrated with printer to print out the testing result
● 300 x 200 matrix LCD display with backlight
● Two probes for option: low and high sensitivity probes
Specification:
|
Measuring range |
Low sensitivity probe |
|
|
Acceleration |
0.1m/s-392m/s (peak) |
|
|
Velocity |
0.01cm/s-80cm/s (RMS) |
|
|
Displacement |
0.001mm-18.1mm (peak-peak) |
|
|
High sensitivity probe |
||
|
Acceleration |
0.1m/s-20m/s (peak) |
|
|
Velocity |
0.01cm/s-4cm/s (RMS) |
|
|
Displacement |
0.001mm-0.8mm (peak-peak) |
|
|
Frequency range |
Low sensitivity probe: |
|
|
Acceleration |
10Hz-200Hz,10Hz-500Hz, |
|
|
10Hz-1KHz,10Hz-10KHz |
||
|
Velocity |
10Hz-200Hz, 10Hz-500Hz,10Hz-1KHz |
|
|
Displacement |
10Hz-200Hz,10Hz-500Hz |
|
|
High sensitivity probe |
||
|
Acceleration |
10Hz-200Hz,10Hz-500Hz, |
|
|
10Hz-1KHz,10Hz-10KHz |
||
|
Velocity |
10Hz-200Hz, 10Hz-500Hz,10Hz-1KHz |
|
|
Displacement |
10Hz-200Hz,10Hz-500Hz |
|
