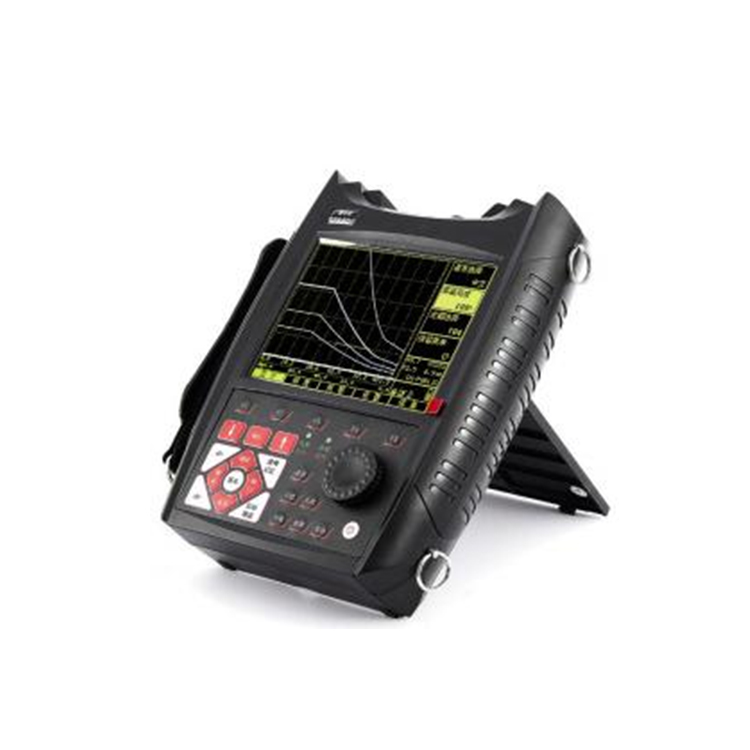

HST650 Ultrasonic flaw detector
Main feature:
*Automated display precise flaw location(Depth d, level p,distance s,amplitude,sz dB,ф);
*Unlimited of video time
*Automated to switch three staff gauge ((Depth d,level p,distance s);
*Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
*Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be
modified and compensated;
*6dB DAC functions;
*Standards of test for DAC is saved.
*500 independence setup, any criterion can be input freely, we can work in the scene without
test block;
*Big memory of 1000 A graph
Technical Specification:
Detection range
0-9999mm
Resolution
＞ 40dB (5p 14)
Working frequency
0.2mhz ～ 15MHz
Linear inhibition
≤ 3%
Sound speed range
1000m / S ~ 9999m / S
Vertical linear error
≤ 3%
Gain range
0dB ～ 110dB
Horizontal linear error
≤ 0. 1%
Sampling frequency
100MHz
Dynamic range
≥ 32dB
Display delay
- 20 μ s to + 3400 μ s
Battery
6 × 3.7V (lithium battery)
Probe bias
0 μ s ～ 99.99 μ s
Power supply
8.4v
Electric noise level
≤ 10%
Ambient temperature
- 20 ℃ ~ 50 ℃
Sensitivity margin
＞ 62db
Ambient humidity
20% - 90% RH
