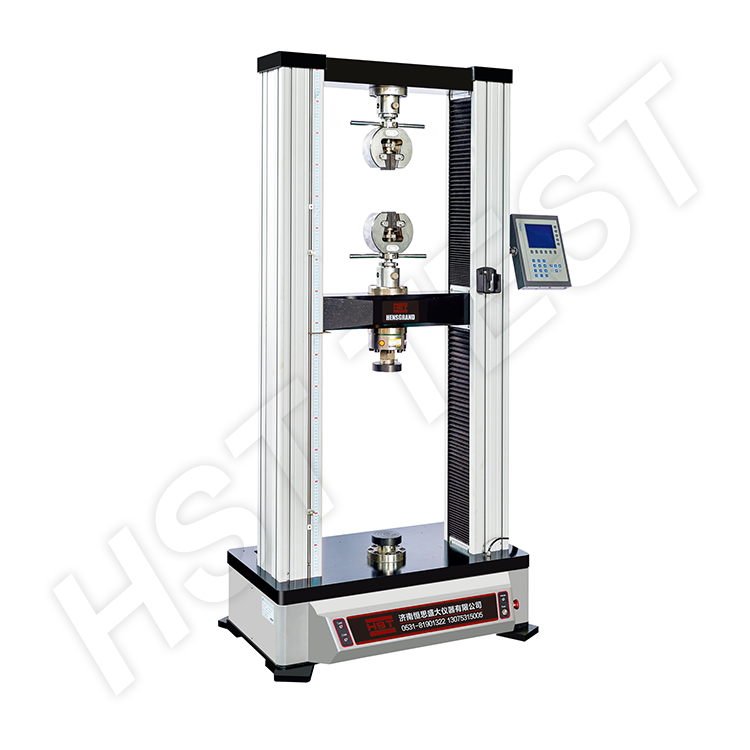

WDS Series Double Column Digital Display Universal Testing Machine(10KN,20KN,50KN,100KN)
1. Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
3.Specifications
Model
WDS-10E
WDS-20E
WDS-30E
WDS-50E
WDS-100E
Max. Load(kN)
10
20
30
50
100
Load accuracy
Class 0.5
Load range
0.2%～100%F·S
Load resolution
1/500000
Resolution of deformation
0.04um
Accuracy of displacement
Within±0.5%of indicating load
Resolution of displacement
0.01mm
Test speed(mm/min)
0.05-1000 stepless arbitrary setting
Speed accuracy
within ±1% / ±0.5% of set speed
E-Tensile space(mm)
670
670
770
770
650
E-Compression space(mm)
900
900
900
1000
1000
D-Test width(mm)
450
450
450
450
550
F-Beam travel distance(mm)
1000
1000
1100
1100
1100
Power supply
AC220V±10%，50Hz/60Hz (can be customized)
