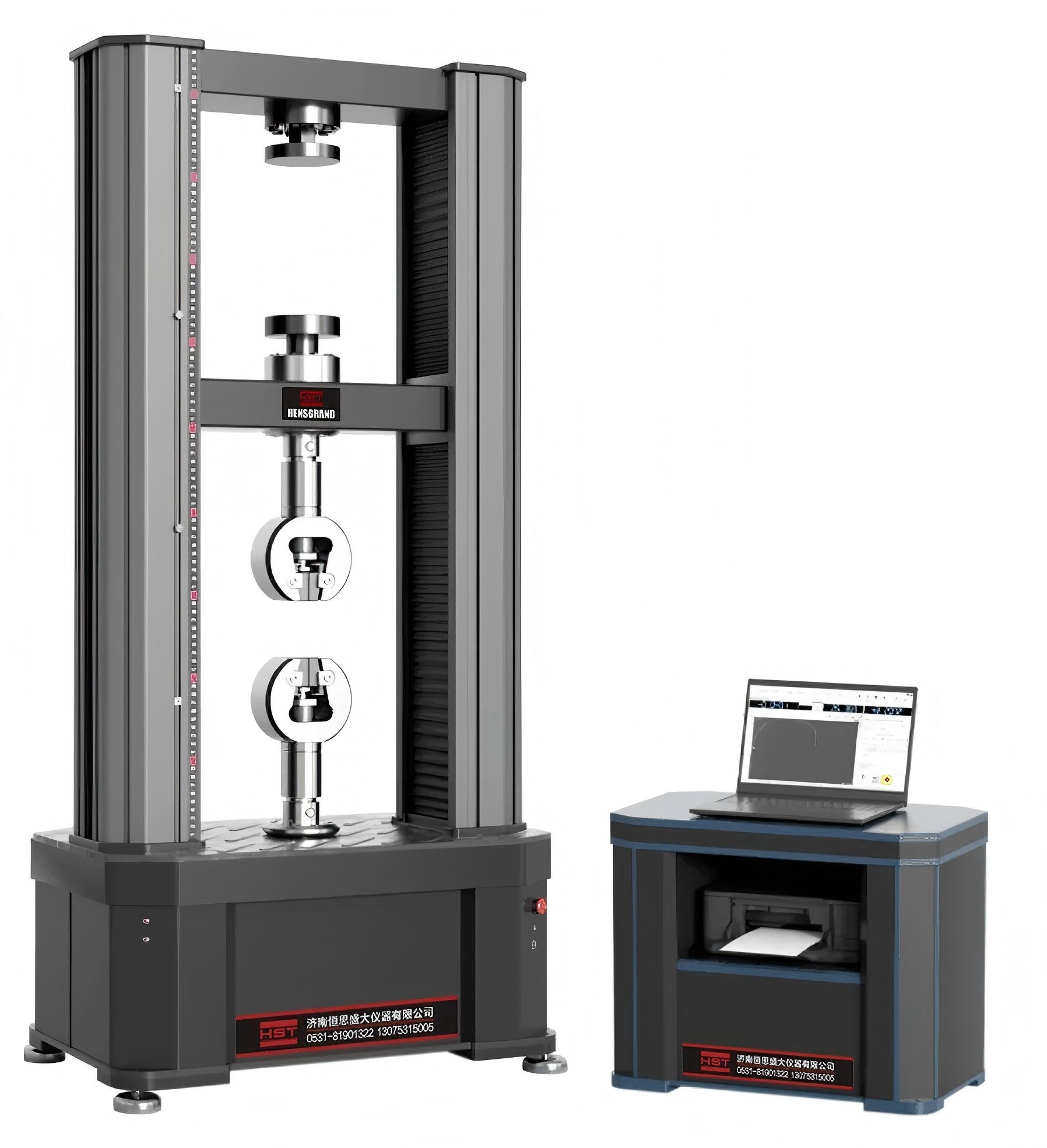

HST WDW-200D 200KN Computer control Electromechanical universal testing machine
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221. Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Standards:
ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221
Request A Quote Files Download1. Introduction
WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
2.Specifications:
|
MODEL |
HST WDW-200D |
|
Load Capacity |
200kN |
|
Calibration standard |
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
|
Testing Load Accuracy |
±0.5% |
|
Testing Load Range |
0.4%～100%FS |
|
Load Resolution |
1/±500000FS |
|
Deformation measuring range |
0.2%～100%FS |
|
Deformation accuracy |
≤±0.5% |
|
Deformation resolution |
1/±500000FS of the max deformation |
|
Test control mode |
Three closed loop control, stress, strain and displacement |
|
Displacement accuracy |
Within ±0.5% of the value |
|
Displacement resolution |
0.1μm |
|
Testing space (Crosshead Travel) |
1130mm |
|
Max. Tensile Testing Space(Include standard fixture) |
630mm |
|
Test width |
550mm |
|
Overall Dimensions |
1010x560x2038mm |
|
Weight |
about 1200kg |
|
Power supply |
1.5KW,1phase AC220V±10%,50/60Hz |
