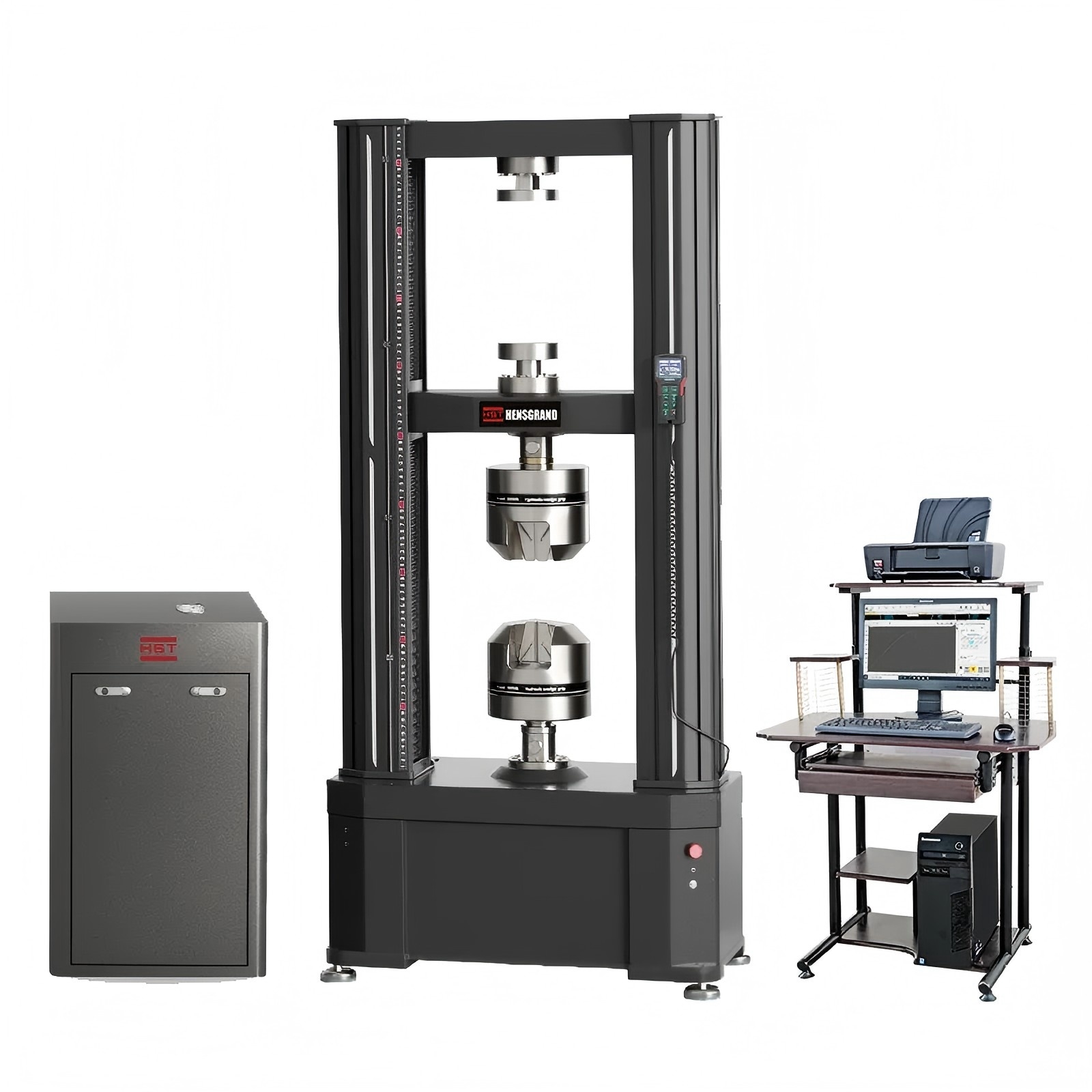

HST WDW-400D 400KN Computer control Electromechanical universal testing machine
WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with
Standards:
ASTM E8,ISO 6892 ,BS EN 10002-1,BS EN 10002-5:,ASTM E21,IS0 783,EN ISO 7438,ASTM F606,ect
Request A Quote Files Download1. Introduction
WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
2. Application range
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
3. Specifications:
|
MODEL |
HSTWDW-400D |
|
Load Capacity |
400kN |
|
Calibration standard |
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
|
Testing Load Accuracy |
±0.5% |
|
Testing Load Range |
0.4%～100%FS |
|
Load Resolution |
1/±500000FS |
|
Deformation measuring range |
0.2%～100%FS |
|
Deformation accuracy |
≤±0.5% |
|
Deformation resolution |
1/±500000FS of the max deformation |
|
Test control mode |
Three closed loop control, stress, strain and displacement |
|
Displacement accuracy |
Within ±0.5% of the value |
|
Displacement resolution |
0.04μm |
|
Testing space(Crosshead Travel) |
1210mm |
|
Max. Tensile Testing Space |
750mm |
|
Test width |
700mm |
|
Overall Dimensions |
1298x868x2562mm |
|
Weight |
about 2000kg |
|
Power supply |
2.5KW, 3 phase AC220V±10%,50Hz/60Hz |
