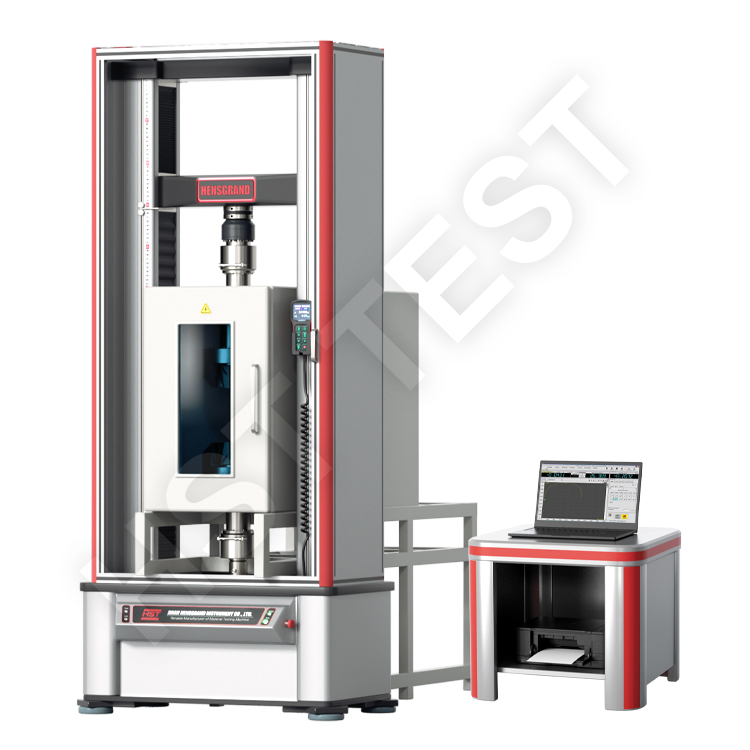

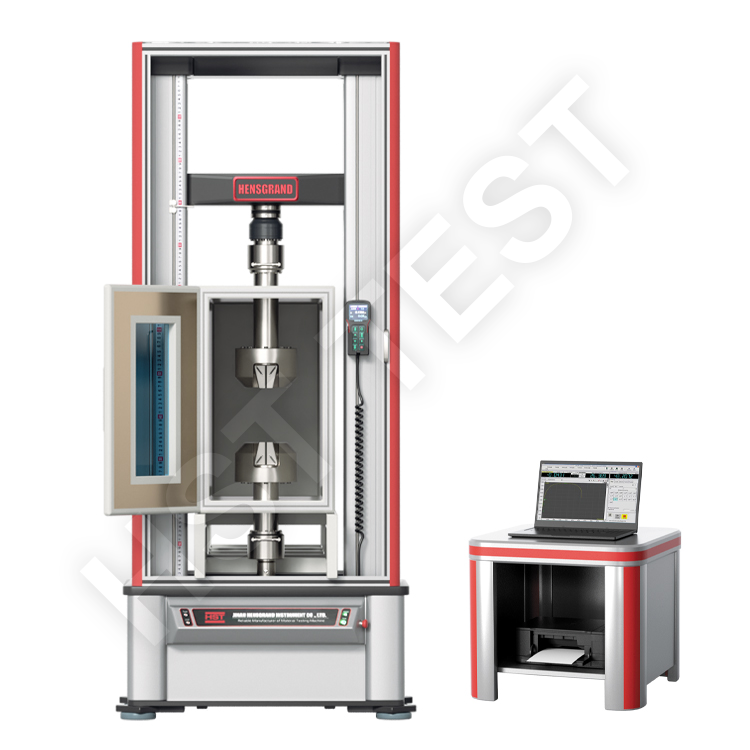

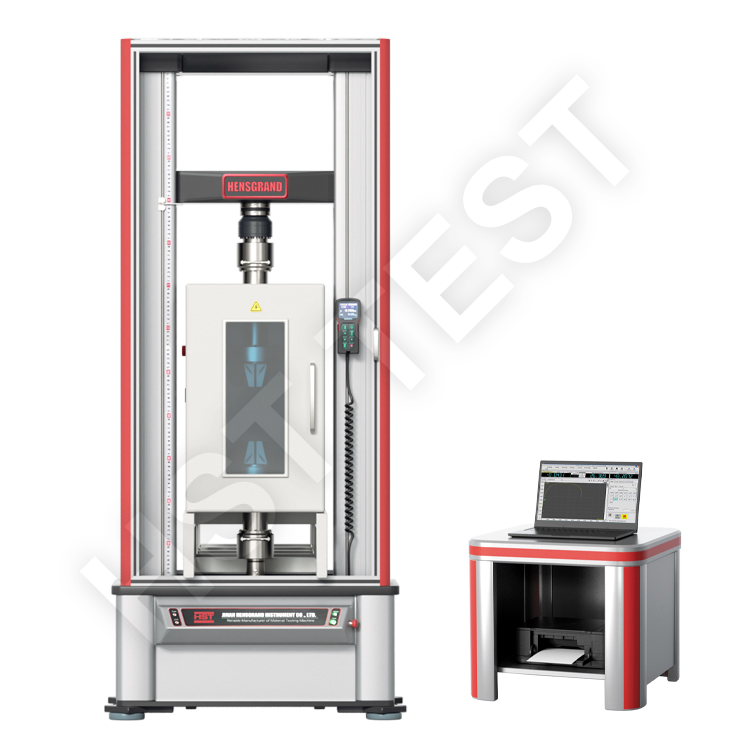

WDW-HLT 200KN 300KN 20T 30T High and Low Temperature Tensile Testing Machine
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum &Chemical; other industries.
2. Testig Machine Specificatios
|
Model |
WDW-200HLT |
WDW-300HLT |
|
Max. Load(kN) |
200 |
300 |
|
Load accuracy |
Class 0.5 |
|
|
Load range |
0.2%～100%F·S |
|
|
Load resolution |
1/500000 |
|
|
Resolution of deformation |
0.04um |
|
|
Accuracy of displacement |
Within±0.5%of indicating load |
|
|
Resolution of displacement |
0.01mm |
|
|
Test speed(mm/min) |
0.01-500 |
0.01-500 |
|
Speed accuracy |
±0.5% of set speed |
|
|
E-Tensile space(mm) |
700 |
700 |
|
E-Compression space(mm) |
1100 |
11000 |
|
D-Test width(mm) |
600 |
600 |
|
F-Beam travel distance(mm) |
1100 |
1100 |
|
Power supply |
AC220V±10%，50Hz/60Hz (can be customized) |
|
3.High-low temperature chamber Specificatios
Model
HST-300GD
HST-430GD
HST-630GD
HST-830GD
HST-1030GD
HST-1930GD
Operating temperature range(℃)
RT+10~300
−40 ~300
−60 ~300
−80 ~300
−100 ~300
−190 ~300
Cooling system
compressor
liquid nitrogen
Temperature uniformity
< 200 ≤±2°C , ≥ 200 ≤±3,5°C
Temperature Fluctuation
≤±1°C
Temperature limit
300℃
Heating rate
2-3℃/min
Power
220V
Material of inner box
stainless steel
Outer box material
stainless steel
Heating system
Nickel-chromium alloy heating wire heater
Insulation Materials
Ultra-fine glass wool or rigid foam
Air supply circulation system
a: motor b: lengthened shaft c: centrifugal fan
Chamber Door
Monolithic door
Controller
Temperature Controller
Control panel
Rotary switch
