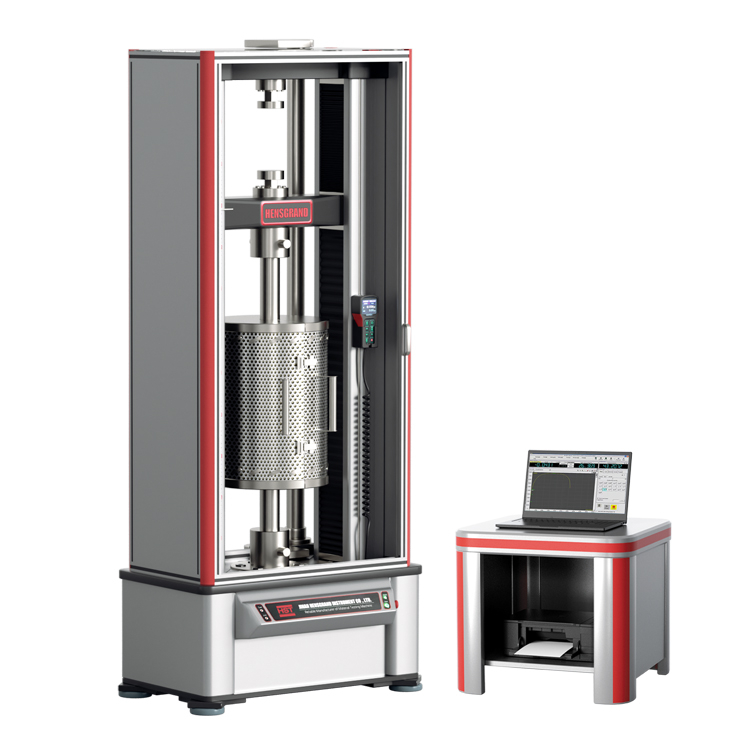

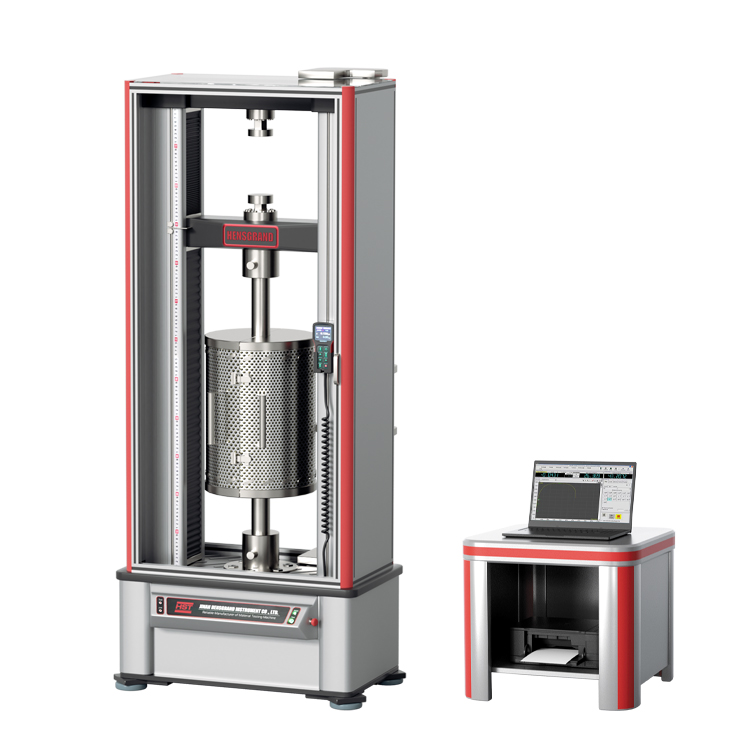

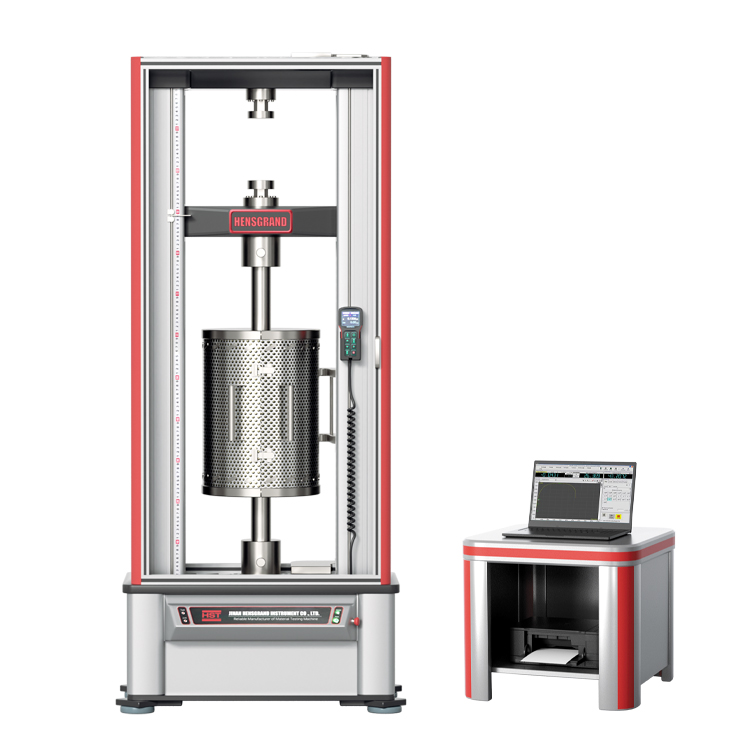

WDW-H High Temperature Tensile Testing Machine (300～1200℃)
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; other industries.
Standards:
ASTM E21, ISO 6892-2, ISO 6892-3
Request A Quote Files DownloadWDW-EG High Temperature Tensile Testing Machine (300～1200℃)
Application
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum &Chemical; other industries.Specification
|
Model |
HST-EG10-1200 |
HST-EG20-1200 |
HST-EG50-1200 |
HST-EG100-1200 |
HST-EG200-1200 |
HST-EG300-1200 |
|
Max. Load(kN) |
10 |
20 |
50 |
100 |
200 |
300 |
|
Load accuracy |
Class 0.5 |
|||||
|
Load range |
0.2%～100%F·S |
|||||
|
Resolution of displacement |
0.01mm |
|||||
|
Test speed(mm/min) |
0.01-1000 |
0.01-1000 |
0.01-1000 |
0.01-500 |
0.01-500 |
0.01-500 |
|
Tensile space(mm) |
770 |
770 |
770 |
650 |
650 |
650 |
|
Compression space(mm) |
770 |
770 |
770 |
650 |
650 |
650 |
|
Test width |
450 |
450 |
450 |
550 |
600 |
600 |
|
Temperature ranage |
300～1200℃(high-temperature furnace) |
|||||
|
Power supply |
AC220V±10%,50Hz/60Hz(can be customized) |
|||||
High Temperature Electric Furnace
Temperature range: 200-1100℃/ 1200℃/1400℃
Heating method:
Three sections of electric wire heating, Segment control
Thermometric Element：
K Type Temperature Measuring Thermocouple
Dimension：Φ300*420mm
Heath Inner Diameter：Φ80mm*360mm
