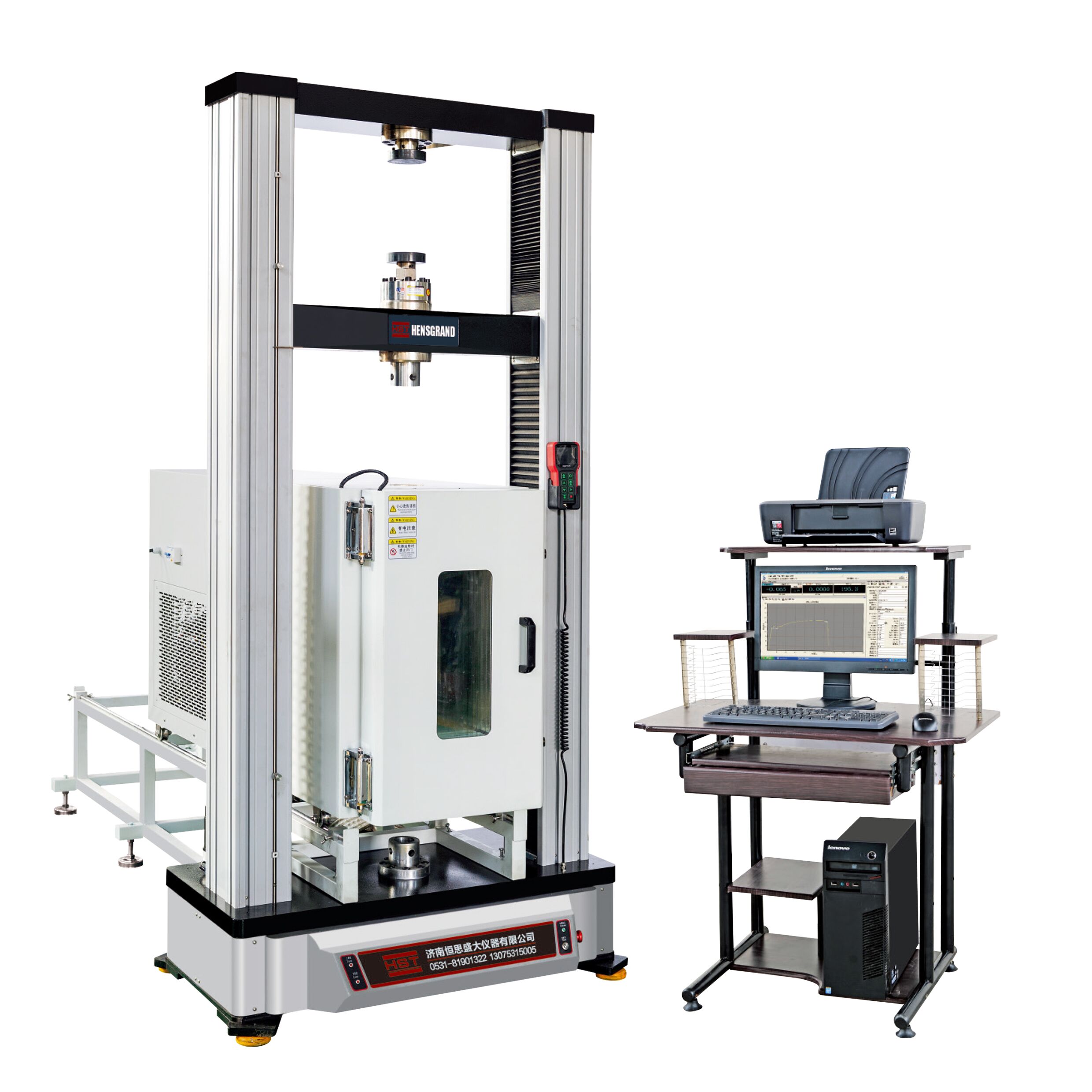

HST-EDG Series High Temperature Tensile Testing Machine(-60-300℃）
1. Application
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum &Chemical; other industries.2. Specificatios
| Model | HST-EDG10,20,50 | HST-EDG100 | HST-EDG200,300 |
| Max. Load(kN) | 10,20,50 | 100 | 200,300 |
| Control method | Computer control | ||
| Load accuracy | Class 1,Class 0.5 | ||
| Load range | 2%～100%F·S,0.2%～100%F·S | ||
| Resolution of displacement | 0.01mm | ||
| Test speed(mm/min) | 0.05-1000 | 0.05-500 | 0.05-200/500 |
| Tensile space(mm) | 800 | 700 | 550 |
| Compression space(mm) | 800 | 700 | 550 |
| Test width | 400 | 550 | 600 |
| Temperature ranage | -60℃~300℃ | ||
| Power supply | AC220V±10%,50Hz/60Hz(can be customized) | ||
| Grips | according to customer's requirement | ||
High and low Temperature test chamber
Temperature range:
-60℃/-80℃~300℃
Inner chamber size:
260*410*360mm
or can according to customer's requirement
