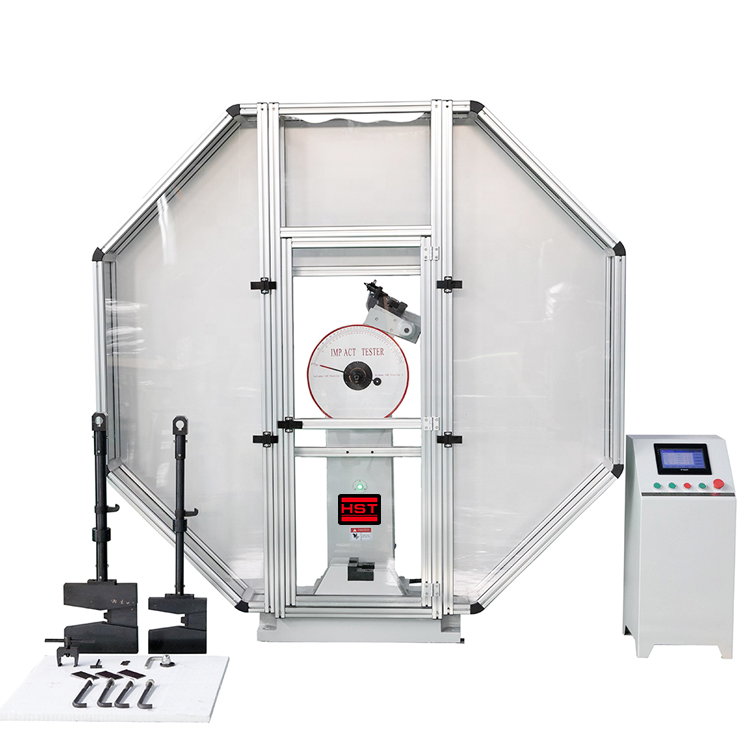

HST-JBS300BP/500BP Digital display Pendulum Impact Testing With fully enclosed protective cover Machine(300J/500J)

HST-JBS300BP/500BP Digital display Pendulum Impact Testing With fully enclosed protective cover Machine(300J/500J)
HST-JBS300BP/500BP Digital display Pendulum Impact Testing With fully enclosed protective cover Machine(300J/500J)
HST-JBS300BP/500BP Digital display Pendulum Impact Testing With fully enclosed protective cover Machine(300J/500J)
Application:
JBS Touch screen Digital Display Charpy Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
Standards
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.

Specifications

MODEL

HST JBS-300BP

HST JBS-500BP

Impact energy (J)

150,300

250,500

Value of every grid (J)

0~300(2J), 0~150(1J)

0~500(5J), 0~250(2.5J)

Moment of pendulum(N·m)

0~300J(160.7695N·m), 0~150J(80.3848N·m)

0~500J(267.9492N.m), 0~250J(133.9746)

Impact velocity (m/s)

5.2

5.24

5.4

Distance between pendulum center and sample center (mm)

750

800

Raised angle

150º

Standard span (mm)

40+0.2

Round angle of jaws (mm)

R1-1.5((1mm is special order)

)

Round angle of striking edge (mm)

R2-2.5 or R8±0.05(8mm is special order)

Specimen holder support surface angle

11°

The impact of the blade angle

30°

The impact blade thickness (mm)

16

Size of specimen (mm)

55x10x10 , 55x10x7.5 , 55x10x5

Power supply

3phs, 380V/220V±10%, 50Hz or specified

Dimensions (mm)

2124 x 600 x 1340

2144 x 736 x 1390

Gross weight(KG)

550

750
