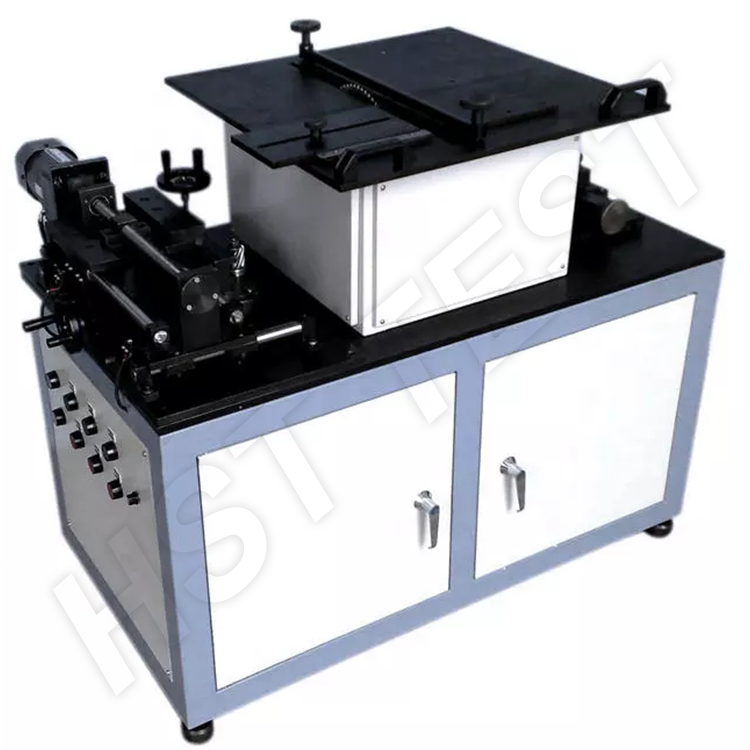

HST50U Universal Dumbbell Sample Making Machine for Impact Tensiel Sample Cutting Machine
This machine is used for processing impact, tension, compression and thermal deformation Vicat of non-metallic materials such as plastics and plexiglass. Standard splines are used for the test. It can cut, milling notch, milling curve, dumbbell and plane.
Technical Parameter
1. Maximum cut-off width: 200 mm
2. Maximum cut-off thickness: 20mm
3. Maximum milling plane length: 200 mm
4. Cutting Milling Cutter (Grinding Wheel Sheet) Specification: 200 *32 *2mm
5. Cutting tool length for milling notches: 50mm
The cutter type is as follows:
Type A 45 +1, R0.25, 0.05
Type B: 45 +1, R0.1, 0.05
6. Tool specifications for processing dumbbell and plane: 30 *12 *30 mm (with GB/T1040_template)
7. Size of the whole machine: 1050 x 620 x 950 mm
8. Spindle speed of each part:
Cut-off spindle speed: 1400-2800r/min
Milling notch spindle speed: 400r/min
Round-trip speed of milling notch milling cutter is 60 times/min
Milling dumbbell and plane part spindle speed:
Low speed: 940r/min.470r/min
High speed: 1430r/min.715r/min
Milling Feed Speed 0-180 mm/min
9. Motor power:
Milling notch motor: 550W
Milling plane and dumbbell motor: 0.8-1.3KW
Cut off motor: 0.8KW
Milling Plane and Dumbbell Automatic Feed Motor: 60W
