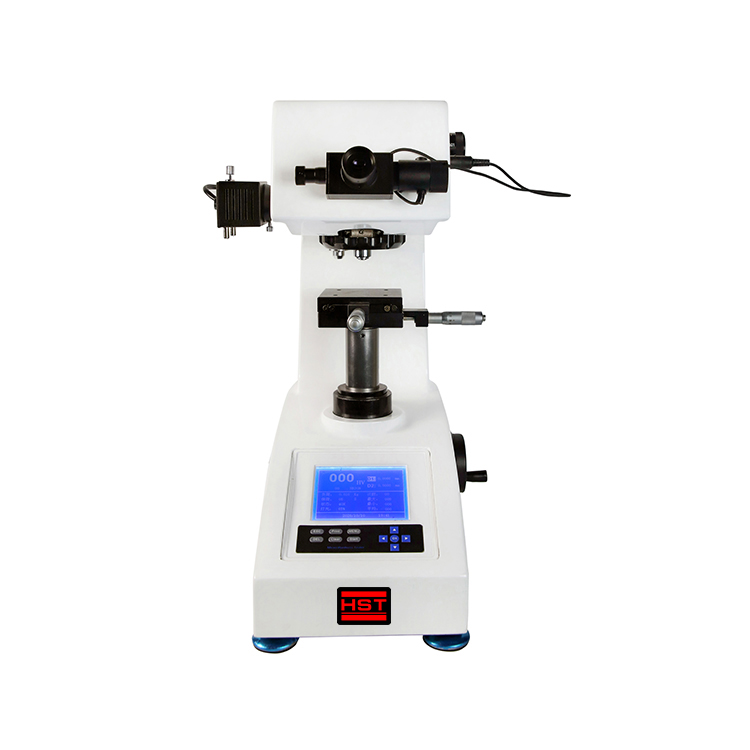

HVS-1000A automtaic turret digital display micro-vickers hardness tester

Product description:

HVS-1000A automtaic turret digital display micro-vickers hardness tester

Share With:

We're here to help:
Easy ways to get the answers you need.
Send E-mail Chat Now


HVS-1000automtaic turret digital display micro-vickers hardness tester LCD display screen is adopted, and the operation interface adopts menu structure. The hardness scale HV or HK can be selected on the operation panel. The hardness value tested will be automatically calculated and displayed. Various hardness values can be converted to each other.
The hardness error can be corrected by software input to make the hardness more accurate.
Test results can be automatically stored, processed and printed
The HVS-1000 digital display microhardness tester has manual switch between the head and the objective lens during the test, and the test point positioning is accurate.



Application
Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.


Technical Parameter


Model HVS-1000A
Test force 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Minimum test unit 0.031µm
Exchange Scales

HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Measuring range 5~3000HV
Test method of force application Automatic( loading, dwelling,unloading )
Test microscope magnification 100X(objective)400X(measurement)
Test load dwell  time 0~60s
X-Y table size:100*100mm  Mx. movement:25*25mm
data output LCD display,Built-in printer and rs-232 interface
Max Height of Specimen 110mm
Distance from the center of the head to the outer wall 110mm
power supply AC220V+5%,50-60Hz
Dimensions 405*290*480mm
Weight 40Kg
