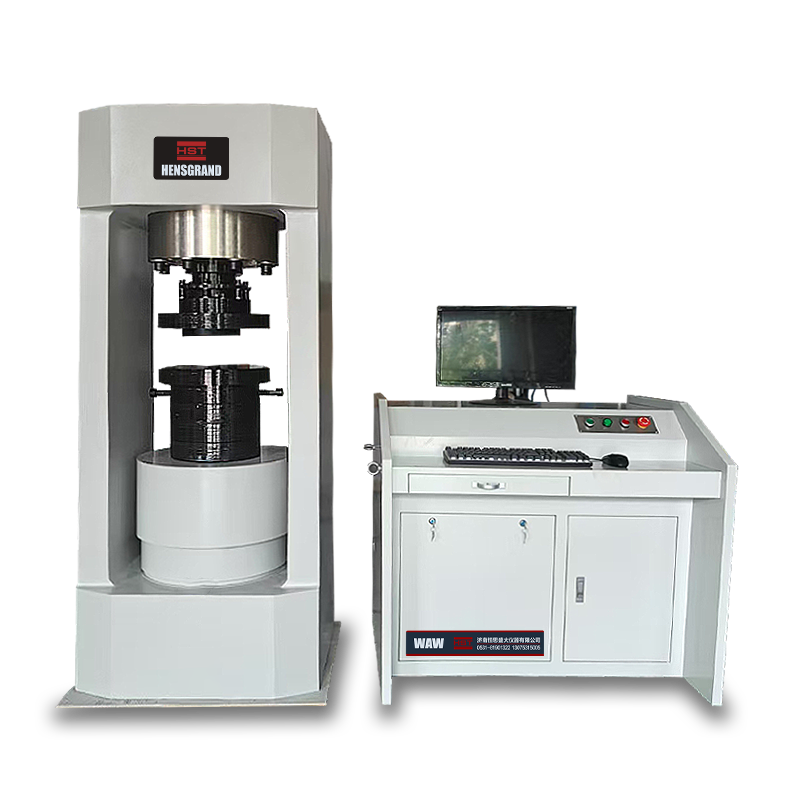

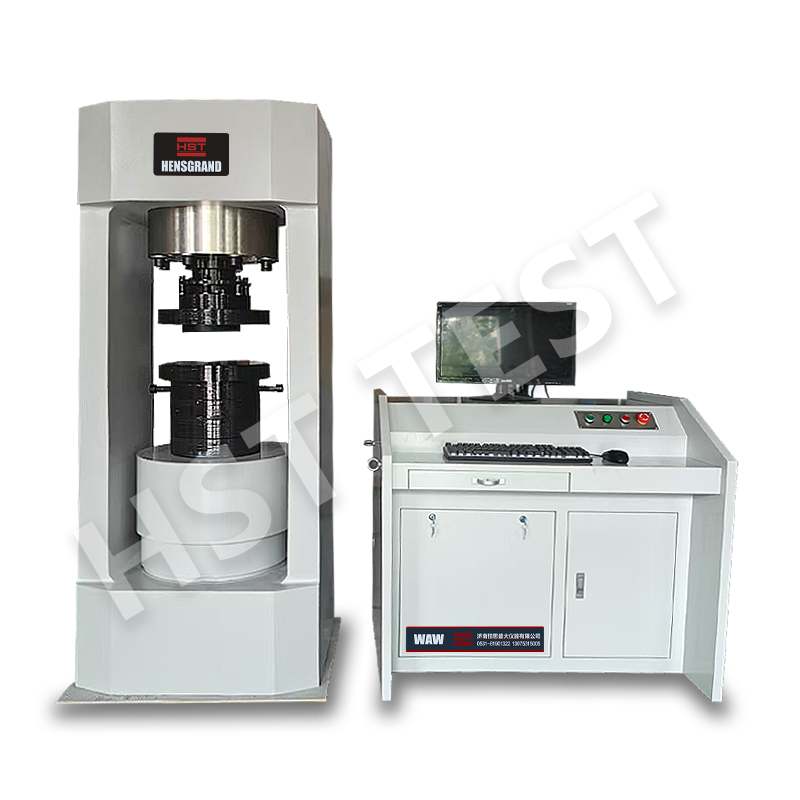

HST-YAW2000DF/HST-YAW3000DF 2000 KN/3000 KN Computer Control Compression Testing Machine
HST-YAW2000DF/HST-YAW3000DF 2000 KN/3000 KN Computer Control Compression Testing Machine
Standards:
EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
Request A Quote Files Download
1.Introduction
This machine is a microcomputer-controlled pressure testing machine, which uses an electric lead screw to adjust the test space. It is suitable for compression tests under rated test force, and can test the compressive and flexural strength of building materials such as cement, concrete, and bricks. The measurement and control system uses a high-precision digital servo valve with a force closed-loop control function, which can achieve equal load rate loading or equal stress rate loading, with high control accuracy and good reliability. It uses a microcomputer to achieve electronic measurement, automatically complete compressive strength tests, and automatically calculate and print reports. It is widely used in the construction industry and testing units.
2.Main Technical Parameters
This machine is a microcomputer-controlled pressure testing machine, which uses an electric lead screw to adjust the test space. It is suitable for compression tests under rated test force, and can test the compressive and flexural strength of building materials such as cement, concrete, and bricks. The measurement and control system uses a high-precision digital servo valve with a force closed-loop control function, which can achieve equal load rate loading or equal stress rate loading, with high control accuracy and good reliability. It uses a microcomputer to achieve electronic measurement, automatically complete compressive strength tests, and automatically calculate and print reports. It is widely used in the construction industry and testing units.
2.Main Technical Parameters
|
Model |
HST-YAW2000DF |
HST-YAW3000DF |
|
Max. Load |
2000kN |
3000KN |
|
Test class |
1 class |
|
|
Test force measurement range |
2%-100% |
|
|
Relative error of test force indication |
< ±1% of indicated value |
|
|
Upper and lower platen spacing (electrically adjustable) |
320 mm |
350mm |
|
Distance between two columns |
280mm |
320mm |
|
Platen dimensions |
320 mm |
250*280 |
|
Piston stroke
|
30mm
|
50mm |
|
Mainframe dimensions |
550*550*1200mm
|
550*750*1400mm
|
|
Control cabinet |
1100*750*900mm |
|
|
Total Weight |
About 1100KG |
About 1200 kg |
|
The total power of the power supply |
1.1KW, AC 380V±10% |
|
