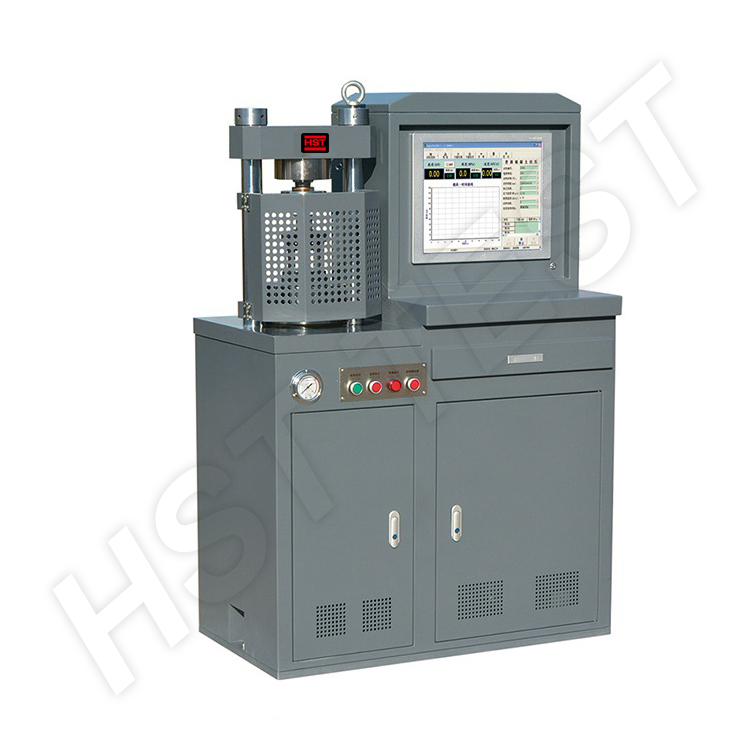

YAW-B Computer Control Hydraulic Compression Testing Machine
This series compression testing machine is mainly designedfor compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also usedfor compression performance test of rubber pad and top forge testof metal. With new design idea and advanced technology, thisseries have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches
at scientific institutes.
Standards
BS EN 12930.4, ASTM C39, GB/T 50081(part 6)
Main Specifications
| Model | YAW-100B | YAW-300B |
YAW-300C |
YAW-300CH |
| Max compression test force(kN) | 100 | 300 | 300,10 | 30,10 Bending |
| Type | Compression | Compression and Bending | ||
| Test Accuracy | ±1% | |||
| Test measurement range | 2%-100%FS | |||
| Control way | Computer control auto loading progress | |||
| Test space adjustment method | Block adjustment test space | |||
| Oil cylinder piston diameter and stroke | Φ125mm×80 | |||
| Maximum Piston rising speed | 60mm/min | |||
| Free fall velocity of the piston | 35mm/min | |||
| Maximum oil pressure | 25Mpa | |||
| Max compression space | 390mm | 180 | ||
| Upper and lower compression plates size | 150mm×200mm | Φ108mm /Φ60mm | ||
