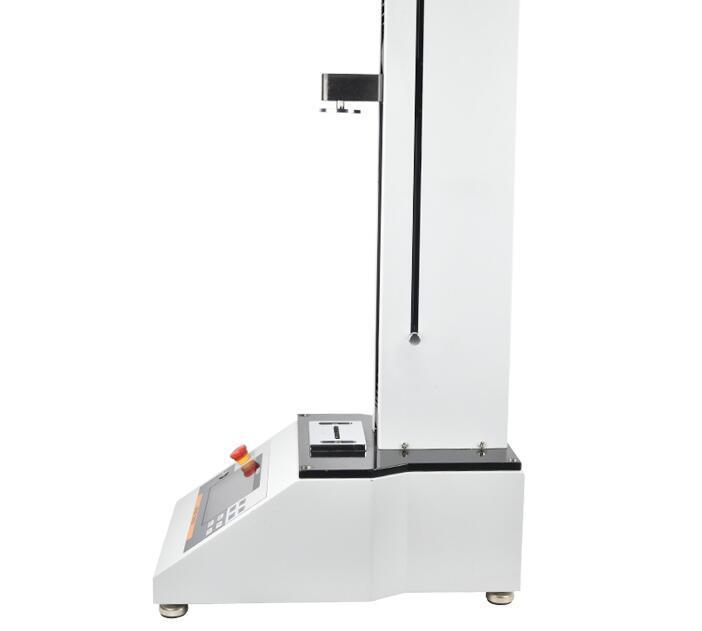

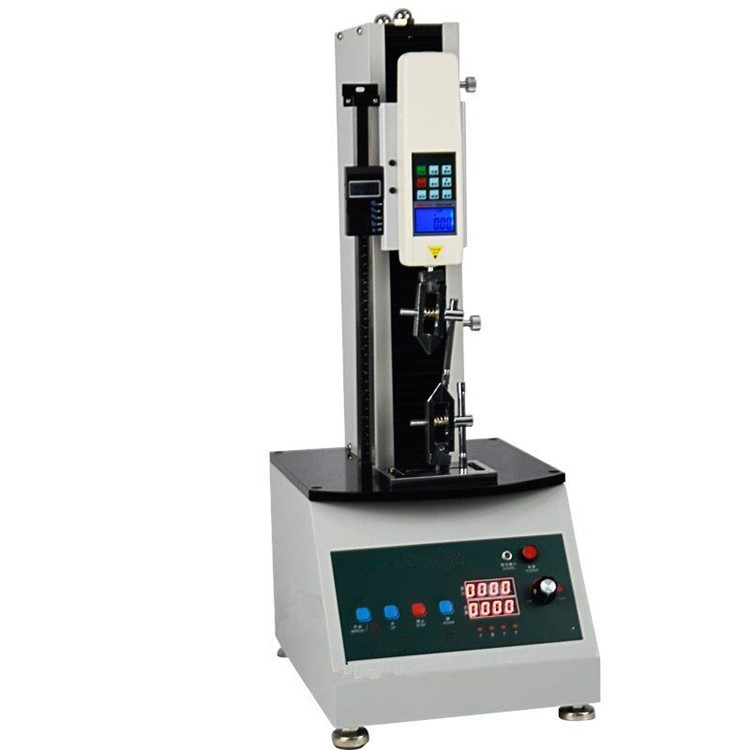

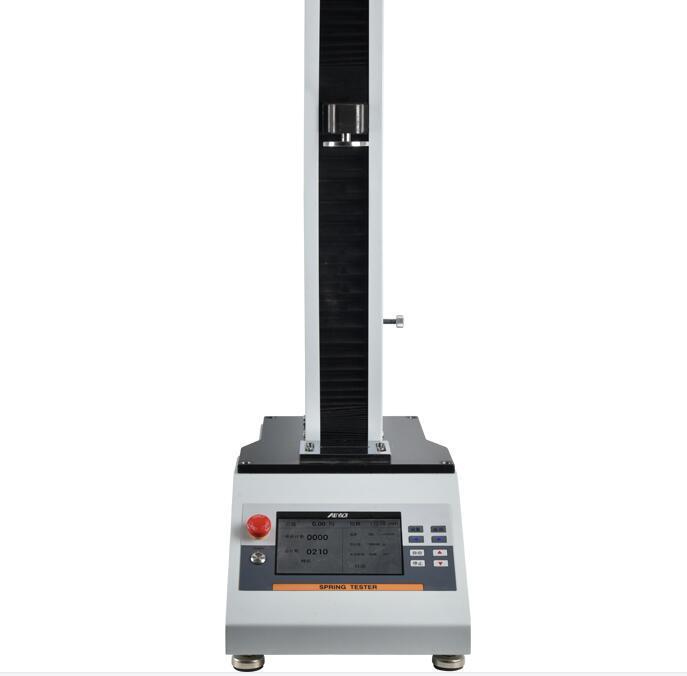

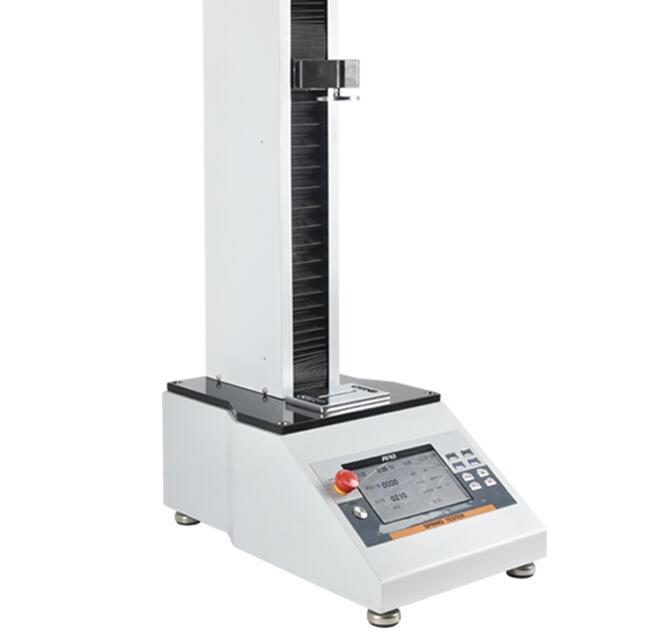

Electric push pull force test vertical machine

MainApplication

The integrated testing machine is an integrated testing machine dedicated to testing tension or compression. Replace traditional electric (manual) test machine+The test method of digital display table enhances the accuracy of test and the convenience of operation. It is suitable for the testing of push-pull load, insertion force, destruction test of rubber and plastic, light industrial textile, building doors and windows, composite materials, wire and cable, auto parts, power machinery, scientific research institutions and other industries.

With emergency stop function.

product model specifications

Type number

HST-A-2

HST-A-3

HST-A-5

HST-A-10

HST-A-20

HST-A-30

HST-A-50

HST-A-100

HST-A-200

HST-A-300

HST-A-500

HST-A-1000

MAX negative Charge

2N

3N

5N

10N

20N

30N

50N

100N

200N

300N

500N

1000N

0.2kg

0.3kg

0.5kg

1kg

2kg

3kg

5kg

10kg

20kg

30kg

50kg

100kg

0.45Lb

0.65Lb

1.1Lb

2.2Lb

4.5Lb

6.5Lb

11Lb

22Lb

45Lb

65Lb

110Lb

220Lb

Load points Degree

0.001N

0.01N

0.1N

0.0001kg

0.001kg

0.01kg

0.0001Lb

0.001Lb

0.01Lb

Accuracy

±0.5%

±1%

Effective itinerary

400mm

Test speed

1-300mm / min

Operating Voltage

AC: 110V or AC: 220V

Dimensions

290mm * 500mm * 900mm

net weight

37kg
