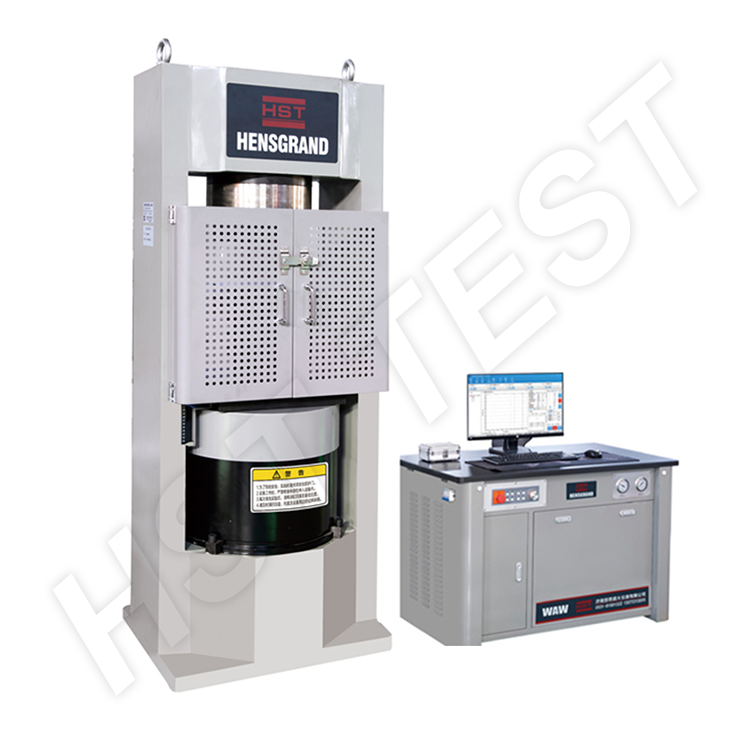

YAW-DH Series Computer Control automatic comprssion testing machine(2000/3000kN)
1. Application
This series compression testing machine is mainly designed for compression test of building material items, such as con
crete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubberpad and top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes.
|
Model |
YAW-2000DH |
HCTM-3000DH |
|
Measurement parameters |
||
|
Max. Load |
2000kN |
3000kN |
|
Control method |
Computer auto control loading process |
|
|
Test class |
1 class |
|
|
Load measuring range |
2-100% of F.S |
|
|
Resolution of test power |
1/500000 F.S |
|
|
Load accuracy |
±1.0% |
|
|
Displacement measurement |
0.01mm |
|
|
Displacement measurement accuracy |
≤±0.5% |
|
|
Host parameters |
||
|
Distance between columns (mm) |
380 |
550 |
|
Upper compression platen (mm) |
φ300 |
|
|
Lower compression platen (mm) |
φ300 |
φ320 |
|
430 |
430 |
|
|
Piston stroke(mm) |
150 |
120 |
|
Piston diameter (mm) |
Φ270 |
Φ370 |
|
Maximum compression space(mm) |
230 |
320 |
|
System pressure (Mpa) |
35 |
35 |
