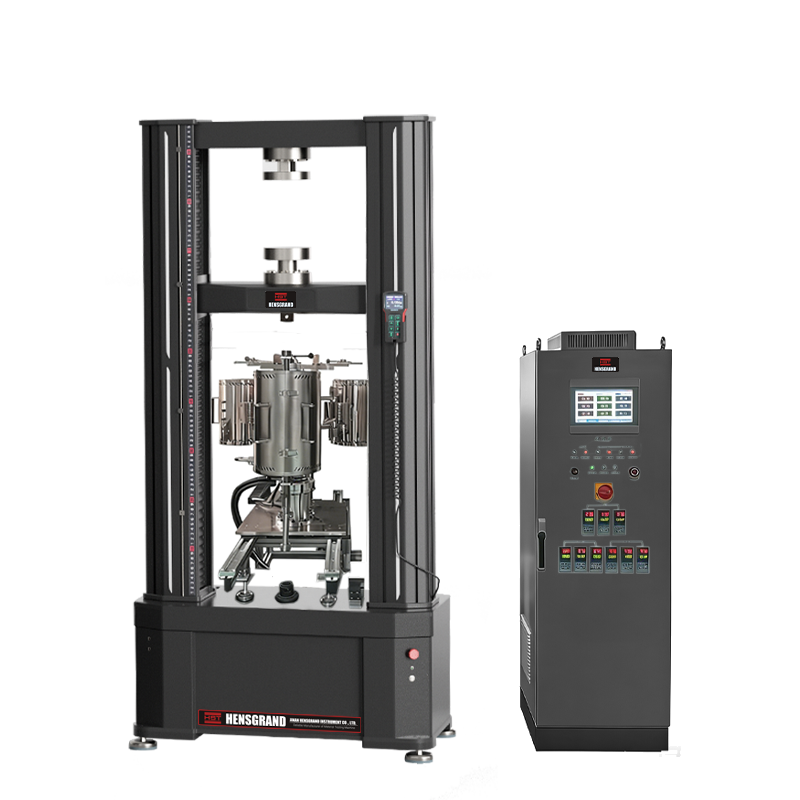

HST-900G-II 300～900℃ Dual workstation High Temperature Testing Furnace
This is used for strength testing under high-temperature conditions in GB/T4338 "Metallic materials - High-temperature tensile testing", HB5195 "Metallic materials - High-temperature tensile testing",
Standards:
GB/T4338,HB5195,GB/T2039,HB5150
Request A Quote Files DownloadOverview
This is used for strength testing under high-temperature conditions in GB/T4338 "Metallic materials - High-temperature tensile testing", HB5195 "Metallic materials - High-temperature tensile testing", GB/T2039 "Metallic materials - Tensile creep and rupture testing", and HB5150 "Metallic materials - High-temperature tensile rupture testing".
System Composition
This electric furnace system consists of: a high-temperature furnace body, a temperature monitoring and control system, heating elements, temperature measuring elements, and a rotating and moving support system.
Technical Performance and Specifications
|
Model |
HST-900G-II |
||
|
Operating Temperature |
300～900℃ |
||
|
Long-Term Operating Temperature |
Below 1000℃ |
||
|
Heating Element Material |
Imported FeCrAl resistance wire |
||
|
Heating Wire Diameter |
φ1.2mm |
||
|
Temperature Sensing Element |
S-type thermocouple (including dedicated compensating wire) |
||
|
Heating Zone Length |
100mm |
||
|
Number of Heating Element Segments |
3 |
||
|
Number of Temperature Sensing Points |
3 |
||
|
Temperature Sensitivity |
0.1℃ |
||
|
Temperature Accuracy |
0.2% |
||
|
Temperature accuracy |
Test temperature (°C) |
Temperature fluctuation |
Temperature gradient |
|
300～600 |
±2 |
±3 |
|
|
600～900 |
±2 |
±3 |
|
|
900～1200 |
±2 |
±3 |
|
|
Furnace inner diameter |
Diameter * Length: φ 90 *320 mm |
||
|
External dimensions |
Diameter * Length: φ 320 * 380 mm |
||
|
Temperature control system |
Xiamen Yudian Instruments 3 units + HMI |
||
|
Operating voltage |
380V |
||
