Application:
It can be used in many industry like oil field, ship building, combustion motor parts, coal mine, machinery, standard parts, oil pump, aerospace parts, car parts, bridge building, chemical industry, pressure container and rail industry and so on. This model can measure the surface flaw and welding joint on irregular shape parts like chain bar, crank shaft, bearings, bolt, spring, forging piece, valve.
Technical Specification:
1. Power source: AC 220V ± 10% 50HZ 5A
2. Output: AC 36V 10A Probes of A.D.E.O can be selected for fitting.
3. Fault detection speed: ≥6 m/m
4. Temperature rise of probe: ≤60℃
5. Operating beat: It is suggested that in continuous
long-time operation magnetization time ≤3s and off time≥5s 6. Weight of the detector: 6.6kg
Probe Parameters:

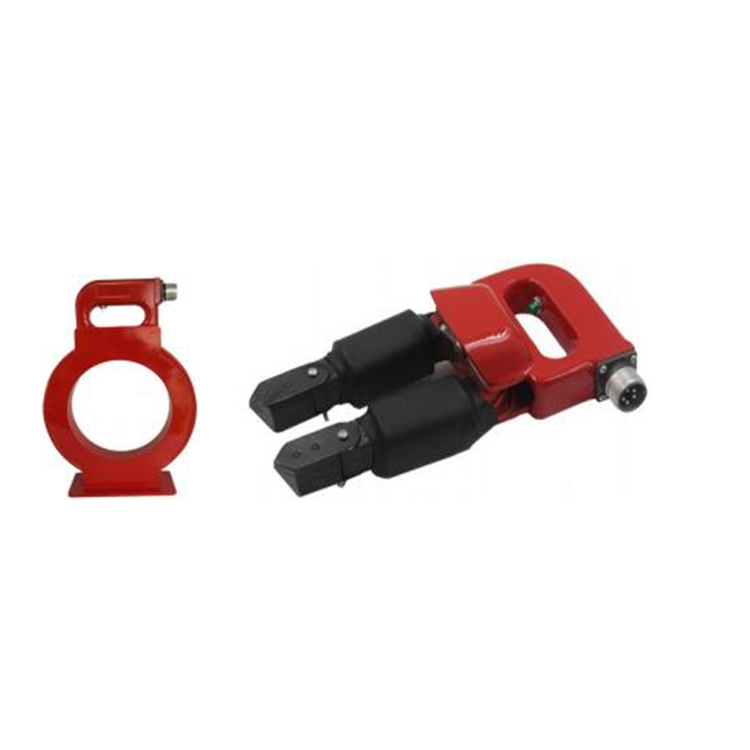

Type D Probe |
also called electromagnetic yoke probe with various turning joints and great magnetization strength. Polar distance:60-220mm; lifting power: AC≥7kg,DC≥ 18kg; weight: 1.6kg.The equipment made by using this probe independently is named electromagnetic yoke detector and the probe is featured by high magnetic inductivity and great magnetization strength. |
Type A Probe |
also named horseshoe magnetic yoke probe or fillet weld probe, turning joint angular magnetic head, which is fitted with a working lamp and is especially suitable for fault detection of work pieces with abnormal face and complicated shape. Polar distance: 20- 160mm;lifting power: AC≥5kg,DC≥ 18kg;weight : 1kg. The equipment made by using this probe is referred to as horseshoe magnetic yoke detector or fillet weld detector. The probe finds wide application as it uses the turning joint. |
Type O Probe |
also called ring probe with an internal diameter of 15mm and center field ≥ 180 Oe.Weight:3kg.The equipment made by using this probe independently is named ring fault detector. It is designed on the principle of forming a strong magnetic field by energizing a coil and is suitable for sectional fault detection or demangnetization of complicated work pieces including axles, bars, pipes and vanes. |
Type E Probe |
also called cross magnetic yoke probe or rotating-field probe and can conduct omnibearing combination magnetization flaw detection at a time. The running roller and working lamp can increase the fault detection speed. Polar distance: 110mm,lifting power: AC≥9kg and weight:2kg.The equipment made by using this probe independently is called rotating-field fault detector, which uses two cross magnetic yokes and AC move-phase technology to produce a synthetic rotating field that varies with time for omnibearing combination magnetization of a work piece at a time. The fault detection is done quickly with high inspection quality. |
