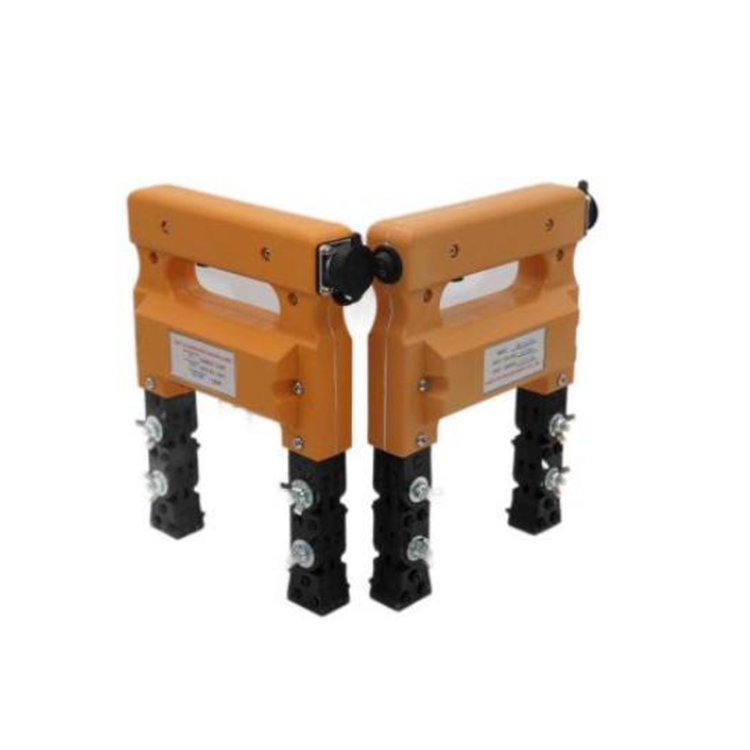

Magnetic Yoke Flaw Detector can make magnetization to various components of, They are applicable to oil, shipbuilding, engine parts, coal, machinery, standard parts, oil pump and nozzle, aircraft manufacturing, automobile other pieces, bridge-building, chemical industry, boiler and pressure vessel, railways and other industry products, due to forging, quenching, welding, fatigue caused by surface and near surface defects, such as chain rod, crankshaft, bearings, high strength bolts, springs, forgings, petrochemical pipe fittings, valves, blades, gears, rollers, chains and complex geometry such as weld inspection of the workpiece.
Specification
Model |
HSTY12-220 |
HSTY12 |
HSTY220 |
|
Power supply mode |
AC-DC |
DC |
AC |
|
Power Supply |
220V50Hz– 12V |
– 12V |
220V50Hz |
|
Charging Power |
220V 50Hz |
220V 50Hz |
|
|
Battery |
MF12—7.2H |
MF12—7.2H |
|
|
Working Current |
AC1 4A/DC1 7A |
DC1 7A |
AC1 4A |
|
Charging Time |
8- 15h |
8- 15h |
|
|
Working Hours |
Over 6 Hours |
Over 6 Hours |
|
|
Working time gap |
One second |
|||
Magnetization Pole Distance |
50-200mm |
50-200mm |
50-200mm |
|
Elevating Force |
A C |
>5.5kg |
|
>5.5kg |
D C |
>25kg |
>25kg |
|
|
Weight |
Yoke |
3.2kg |
3.2kg |
3.2 kg |
Battery |
2.9kg |
2.9kg |
|
|
Dimension(mm) |
Yoke |
208×52×146 |
208×52×146 |
208×52×146 |
Battery |
160×100×70 |
160×100×70 |
|
|
Charger |
80×60×40 |
80×60×40 |
|
