Semi-auto Video Measuring System HST-D Series
Product name：Semi-auto Video Measuring System HST-D Series
Product categories：Manual Video Measuring System
Abstract：
Advantage:1.Auto focus. 2. High precision & high performance.
I. Usage

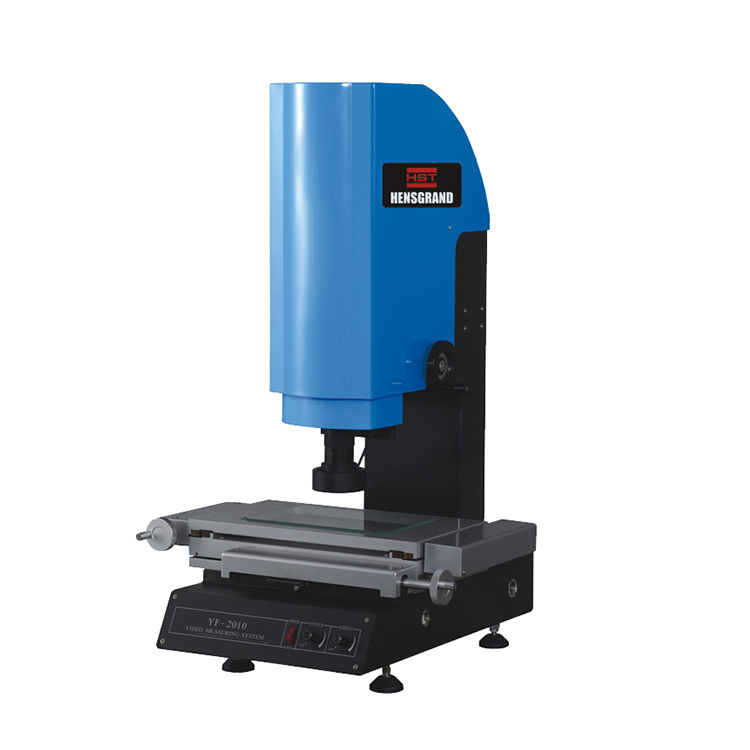

HST-D Series is the semi-automatic type Video Measuring System produced by HST Group.
It has been widely applied in machinery, electronics, aerospace, automotive, military, mold, and other industries for precision measurement.
II. Features
1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Motorized in Z axis, it can satisfy precision focus and high accuracy non-contact height, depth measurement with easy clicks on metrology software.
3. Programmable integrated 8 regional light control, achieve professional surface measurement.
4. Grade 00 JINANQING granite base and column, high stability.
|
Model |
HST-2010D |
HST-3020D |
HST-4030D |
HST-5040D |
|
|
Table |
Metal Table Size (mm) |
404*228 |
500*330 |
606*466 |
706*606 |
|
Glass Table Size (mm) |
260*160 |
350*280 |
450*350 |
550*450 |
|
|
XY Stroke (mm) |
200*100 |
300*200 |
400*300 |
500*400 |
|
|
Weight (kg) |
180 |
260 |
315 |
500 |
|
|
Dimension (L*W*H,unit:mm) |
556*540*860 |
670*660*950 |
720*950*1020 |
800*1040*1020 |
|
|
Measuring Targeting System |
Camera: 1 /2’’ Color CCD Camera |
||||
|
Zoom Lens: Pomeas™ optical lens, magnification 0.7X-4.5X WD: 92mm |
|||||
|
Video Magnification: 20X-128X |
|||||
|
Object view: 7~1.1mm |
|||||
|
Scale Resolution: 0.5/0.1 μm |
|||||
|
Z Stroke |
150mm |
||||
|
Accuracy E1* |
Ex, y ≤（2.5+L/200) μm |
||||
|
Accuracy E2* |
Exy ≤ (3.5+L/200) μm |
||||
|
Illumination |
Surface light and transmission light are used LED，brightness adjustable |
||||
|
Power |
110/220V(AC)，50/60HZ 100W |
||||
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice.
