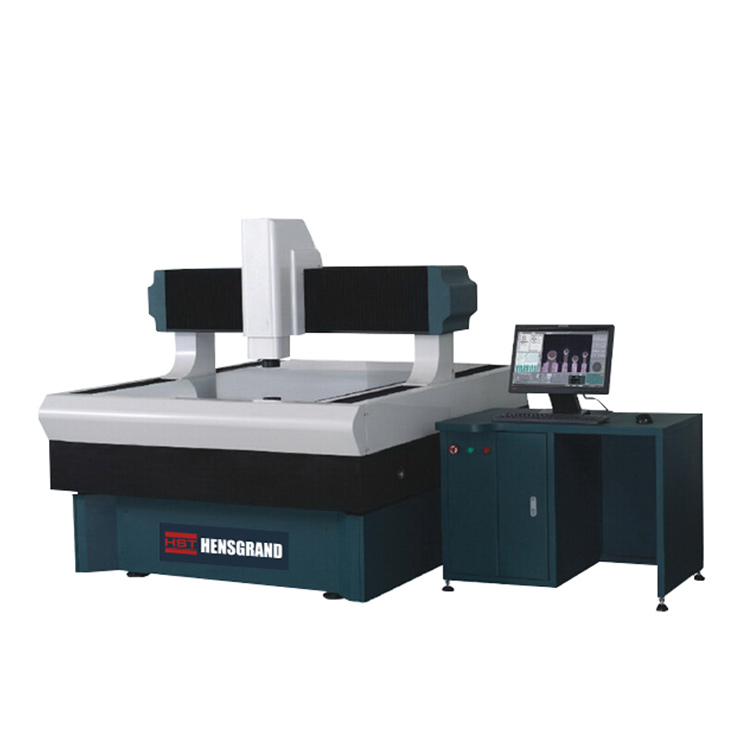

Large Gantry CNC Video Measuring System VMG Series
Product name：Large Gantry CNC Video Measuring System VMG Series
Product categories：CNC Video Measuring System
Abstract：
VMG series, sophisticated gantry CNC video measuring system developed by HST Group.
I、use
The VMG series is the HST Group's latest large-stroke gantry CNC video measurement system. Using the original Japanese imported wire rod drive and servo control technology, combined with the automatic measurement software independently developed by our company, has been widely used in LCD display parts, PCB, communication equipment parts, sheet metal, aerospace industry and other industries of precision vehicle measurement.
II.feature
1. It adopts TEO™ 1 / 2’’ color CCD camera and professional Pomeas™ auto zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Grade 00 JINANQING granite base, gantry structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.
3. Programmable control of integrated 40 groups, 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.
4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.
5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.
|
Model |
VMG0203 |
VMG0405 |
VMG0608 |
VMG0810 |
VMG1012 |
VMG1215 |
VMG1518 |
|
Glass Size (mm) |
300*400 |
500*600 |
700*900 |
900*1000 |
1100*1300 |
1300*1600 |
1600*1900 |
|
X,Y Stroke (mm) |
200*300 |
400*500 |
600*800*200 |
800*1000*200 |
1000*1200*200 |
1200*1500*200 |
1500*1800*200 |
|
Z Stroke(mm) |
200 |
||||||
|
Load Capacity |
approx. 35 kg |
||||||
|
Dimension (mm) |
820*1020*1600 |
1020*1220*1600 |
1220*1520*1600 |
1420*1720*1600 |
1620*1920*1600 |
1820*2220*1600 |
2120*2520*1600 |
|
Weight(kg) |
1000 |
1250 |
1380 |
2000 |
2500 |
3000 |
4000 |
|
Resolution |
0.5/0.1μm |
||||||
|
Camera |
TEO™ 1 / 2" CCD Camera |
||||||
|
Zoom Lens |
professional auto zoom lens Zoom lens magnification: 0.7-4.5X |
||||||
|
Video Magnification |
20-128X |
||||||
|
FOV |
12.7 mm |
||||||
|
Accuracy E1* |
Ex,y ≤ (2.8+L/200)μm |
Ex,y ≤ (3.5+L/200)μm |
Ex,y ≤ (4.5+L/200)μm |
||||
|
Accuracy E2* |
Exy ≤ (3.3+L/200)μm |
Exy ≤ (4.5+L/200)μm |
Exy ≤ (5.8+L/200)μm |
||||
|
Illumination |
Surface and transmitted light source adopt LED, brightness adjustable |
||||||
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice
