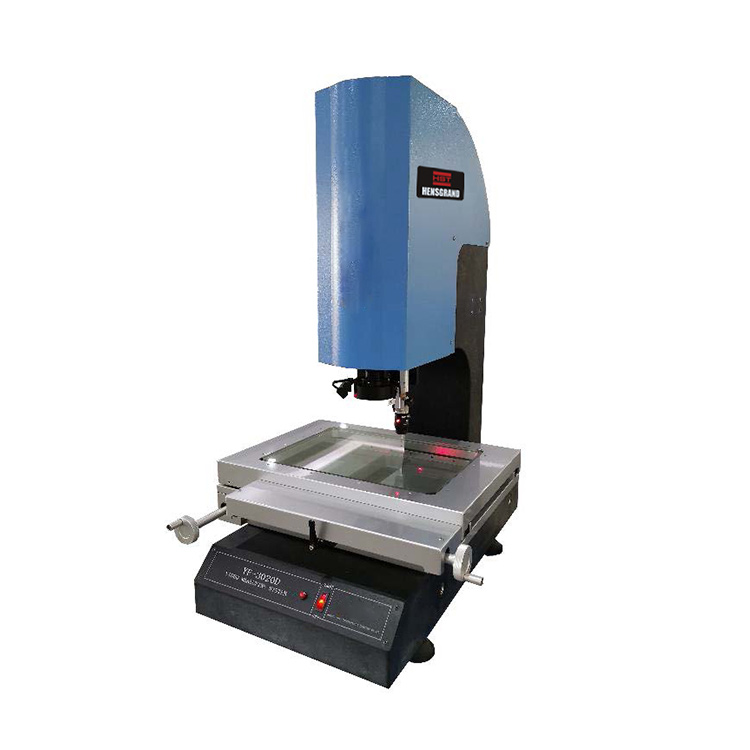

Enhanced Manual Video Measuring System HST-F Series
Product name：Enhanced Manual Video Measuring System HST-F Series
Product categories：Manual Video Measuring System
Abstract：
The Enhanced Type Manual Video Measuring System developed by HST Group .Low cost, easy to use
I.Usage
HST-F Series is the enhanced type manual Video Measuring System developed by HST Group.
It has been widely used in machinery, electronics, metalwork, mould, plastic and other industries for precision measurement.
II. Features
1. It adopts TEO™ 1/2'' colors CCD camera, and professional optical zoom lens and the cross-line generator as a measure aiming system.
2. Digital measurement and data processing system consists of two coordinate’s studio, optical linear scale.
3. It has a variety of data processing, display, input, output, in particular, is very useful function of the work piece straighten.
4. It has R232 interface with a computer and specialized measurement software which can also be processed and output circular mapping.
5. Grade 00 JINANQING granite base and column, high stability.
|
Model |
HST-2010F |
HST-3020F |
HST-4030F |
HST-5040F |
|
|
Table |
Metal Table Size (mm) |
404*228 |
500*330 |
606*466 |
706*606 |
|
Glass Table Size (mm) |
260*160 |
350*280 |
450*350 |
550*450 |
|
|
XY Stroke (mm) |
200*100 |
300*200 |
400*300 |
500*400 |
|
|
Weight (kg) |
180 |
260 |
315 |
500 |
|
|
Dimension (L)*(W)*(H) |
556*540*860 |
670*660*950 |
720*950*1020 |
800*1040*1020 |
|
|
Measuring Targeting System |
Camera: TEO™ 1 / 2’’ Color CCD Camera |
||||
|
Magnification of Zoom Lens: 0.7～4.5X WD:92mm |
|||||
|
Video Magnification: 20~128X FOV:7~1.1mm |
|||||
|
Scale Resolution: 0.5/0.1 μm |
|||||
|
Z Stroke |
150mm |
||||
|
Accuracy E1* |
Ex, y ≤（3.0+L/200) μm |
||||
|
Accuracy E2* |
Exy ≤ (4.0+L/200) μm |
||||
|
Illumination |
Surface light and transmission light adopt LED, brightness adjustable |
||||
|
Power |
110/220V(AC), 50/60HZ 30W |
||||
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice.
