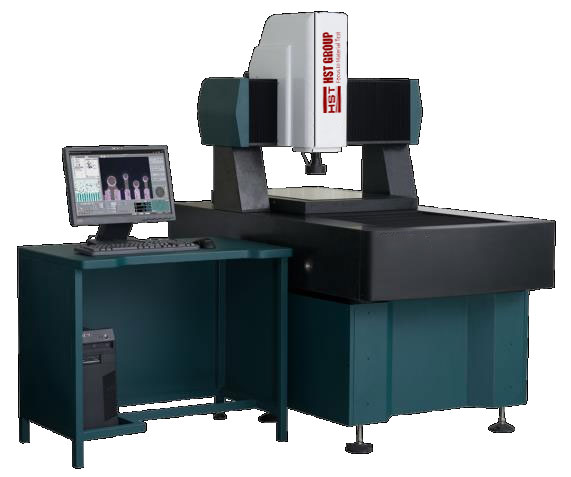

Bridge CNC Video Measuring Machine HST Series
Product name：Bridge CNC Video Measuring Machine HST Series
Product categories：CNC Video Measuring System
Abstract：
HSTseries, bridge type CNC video measuring system developed by HST Group
I. Usage
HST series is the bridge type CNC Video Measuring System developed by HST Group. It adopts original Japan imported screw drive and servo control technology. Combined with auto measurement software developed by HST Group, it can achieve efficient and accurate measurement of large volume work piece, popular for precision parts inspection and quality control. It has been windely used in machinery, electronics, hardware, plastics, mould and etc.
II. Feature
1. It adopts TEO™ 1 / 2’’ color CCD camera and professional zoom lens, big FOV, guarantee clear image during fast moving image measurement.
2. Fixed bridge granite structure, with German & Japanese auto-control technology, can achieve high precision motion, high stability for measuring large volume work-piece.
3. Programmable control of integrated 8 regional independent light sources, achieve professional surface measurement. Swift batch measurement help to cut labor cost.
4. Coupled with U.S. 2D+3D optical metrology software RationalVue™, wonderful measurement experience.
5. Option Renishaw™ touch probe & Keyence™ laser sensor available, high accuracy composite contact or non-contact 3D measurement available.
|
Model |
HST-6040H |
HST-6050H |
HST-8060H |
|
Glass Size (mm) |
650*450 |
650*550 |
850*650 |
|
Stroke(mm) |
400*600*150 |
500*600*150 |
800*600*150 |
|
Machine Dimension(mm) |
950*1600*1580 |
950*1800*1580 |
1200*2000*1580 |
|
Weight(kg) |
1150 |
1350 |
1550 |
|
Scale Resolution |
1/0.5 μm |
||
|
Camera |
TEO™ 1 / 2 "CCD Camera |
||
|
Zoom Lens |
Manual Optical Zoom Lens, Magnification: 0.7-4.5X |
||
|
Video Magnification |
20-128X |
||
|
FOV |
11.1-1 .7 mm |
||
|
Accuracy E1* |
Ex, y ≤ (3.0+L/200)μm |
||
|
Accuracy E2* |
Exy ≤ (4.0+L/200)μm |
||
|
Illumination |
Surface light and transmitted Light adopts white LED, brightness adjustable |
||
|
Power |
110V/220V AC 50/60Hz, Power consumption: 1000W |
||
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice.
