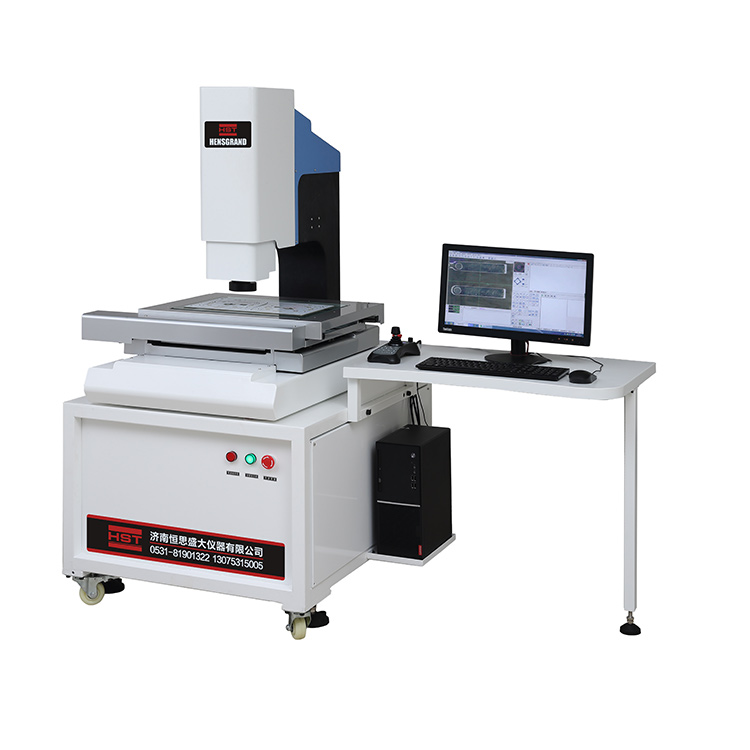

Economical CNC Video Measuring System VMS Series
Product name：Economical CNC Video Measuring System VMS Series
Product categories：CNC Video Measuring System
Abstract：
VMS Series, an universal, economical type CNC Video Measuring System developed by HST Group
1. use
The VMS series is a universal CNC video measurement system developed by the HST Group. Widely used in mechanical, electronic, aerospace, automotive, military, mold and other industries of precision automatic measurement
II.feature
1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.
2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines
and instruments through the USB line and S-Video cable.
3. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.
4. With my company-specific CNC software has greatly enhanced the efficiency measurement.
5. Grade 00 JINANQING granite base, column, high stability.
|
Model |
VMS-3020E |
VMS-4030E |
VMS-5040E |
||||
|
|
Work Table Size(mm) |
500*330 |
606*466 |
706*566 |
|||
|
Glass Table Size(mm) |
350*280 |
450*350 |
550*450 |
||||
|
X,Y Stroke(mm) |
300*200 |
400*300 |
500*400 |
||||
|
Z Stroke |
150(Focus) |
150(Focus) |
150(Focus) |
||||
|
Resolution |
1/0.5 μm |
||||||
|
Accuracy E1* |
Ex, y ≤ (3.0+L/200) μm |
||||||
|
Accuracy E2* |
Exy ≤ (3.5+L/300) μm |
||||||
|
Instrument Weight (kg) |
270 |
450 |
500 |
||||
|
Instrument Dimension (mm) |
670*660*950 |
720*950*1020 |
800*1040*1020 |
||||
|
|
Three-axis Max. Velocity |
X,Y: 400mm/s Z: 200mm/s |
|||||
|
Three-axis Positioning Accuracy |
0.001 mm |
||||||
|
|
Camera |
TEO™ Color 1 / 2 "CCD Camera |
|||||
|
Zoom Lens |
Manual zoom lens |
||||||
|
Zoom Lens Magnification |
0.7-4.5X |
||||||
|
Video Magnification |
20-128X |
||||||
|
FOV |
11.1-1.7mm |
||||||
|
Power Consumption |
600W |
||||||
|
Instrument Accessories |
1X Tube (standard) |
0.5X Tube (optional) |
WD |
||||
|
Zoom Lens |
0.7-4.5X |
0.7-4.5X |
|
||||
|
Add Lens |
Video Magnification |
FOV |
Video Magnification |
FOV |
|||
|
0.5X(option) |
10X-64X |
22-3.4 |
5X-32X |
44-6.8 |
175 |
||
|
1.0X(standard) |
20X-128X |
11.1-1.7 |
10X-64X |
22-3.4 |
92 |
||
|
2.0X(option) |
40X-256X |
5.5-0.9 |
20X-128X |
11.1-1.7 |
36 |
||
* All data is tested according to Standard ISO 10360-7-2011
L is measured length (units: mm)
Specifications subject to change without notice.
