Polyethylene & Polypropylene Electronic Tensile Strength Testing Machine(ASTM D3826)

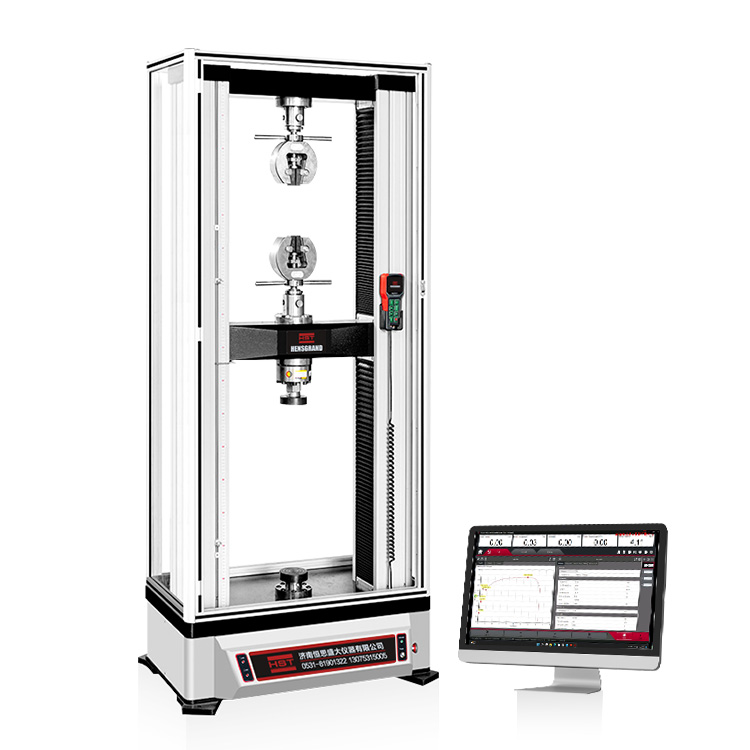

Polyethylene & Polypropylene Electronic Tensile Strength Testing Machine
Application:
Polyethylene & Polypropylene Electronic Tensile Strength Testing Machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.
ASTM D3826 is a standard test method that determines the tensile properties of a plastic sample before and after degradation. Degradation is an important property for plastics because it determines how much time is needed to recycle a material.
Main technical parameters:
Model
WDW-5KN/10KN/30KN/50KN
Type
Double column model
Accuracy Grade
Class 0.5
Force-measuring Range
0.4%~100%FS
Deformation-measuring Range
2%~100%FS
Deformation-measuring Accuracy
±1%
Crossbeam Displacement Resolution
0.001mm
Crossbeam Speed Range
0.05~500mm/min
Displacement Speed Accuracy
≤ ±0.5%
Metal Extensometer Accuracy Grade
±0.5%
Test width
380(can up to 1200)mm
Tensile Space
700mm
Compression Space
1000mm
Clamps
Tensile, compression, bending fixture
PC System
Equiped with brand computer
Power Supply
AC 220V±10%, 50Hz (can be customized as customer request)
Size of the host
700*400*2000mm
Packing size & Weight
800*500*2100mm,about 350kg
