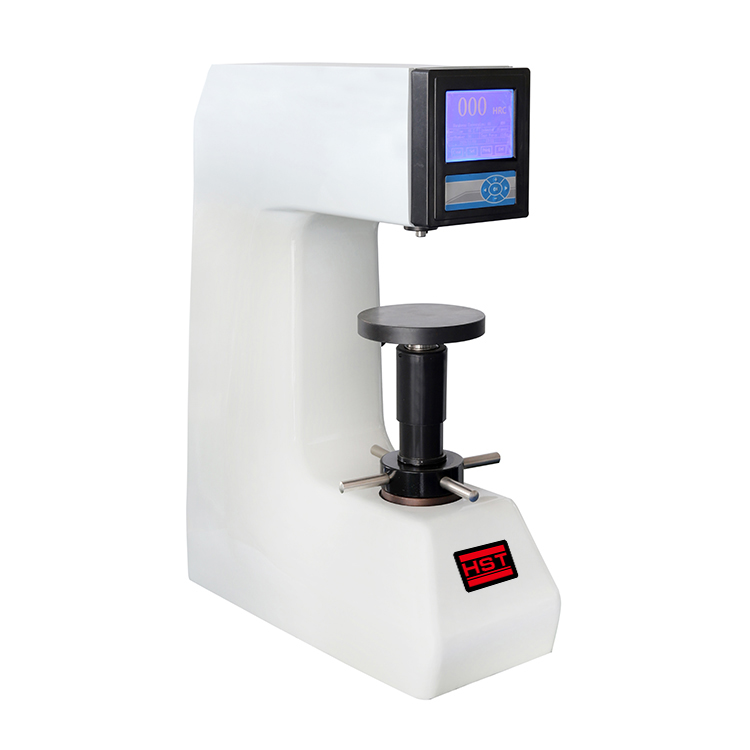

HRS-150 Digital Display Rockwell Hardness Tester
1.Application:
HRS-150 Digital Display Rockwell Hardness Tester adopts novel-designed large LCD screen to display, as well as menu structure.
It mainly functions are as follows:
1.1. Lever Loading, durable and reliable, the test process automation, no human operator error.
1.2. LCD automatically display the hardness value, and can be converted hardness.
1.3. Built-in printer, automatic printing hardness results.
1.4. Precision hydraulic buffers, steady load.
1.5. No friction spindle, high precision test force.
1.6. Accuracy according to GB / T230.2, ISO 6508-2 and American ASTM E18 standard.
2.Usage Range:
Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.
Wide range of applications, suitable for Rockwell Hardness Testing of hardening, quenching and other heat-treated material.
3.Main Specifications:
HRS-150 Digital Display Rockwell Hardness Tester adopts novel-designed large LCD screen to display, as well as menu structure.
It mainly functions are as follows:
1.1. Lever Loading, durable and reliable, the test process automation, no human operator error.
1.2. LCD automatically display the hardness value, and can be converted hardness.
1.3. Built-in printer, automatic printing hardness results.
1.4. Precision hydraulic buffers, steady load.
1.5. No friction spindle, high precision test force.
1.6. Accuracy according to GB / T230.2, ISO 6508-2 and American ASTM E18 standard.
2.Usage Range:
Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.
Wide range of applications, suitable for Rockwell Hardness Testing of hardening, quenching and other heat-treated material.
3.Main Specifications:
| Model | HRS-150 |
| Measuring Range | 20-88HRA, 20-100HRB, 20-70HRC |
| All Testing Force | 60 kgf (588.4N), 100 kgf (980.7N), 150 kgf (1471N) |
| Max. Height Of Speciment | 210 mm |
| Max. Depth Of Speciments | 165 mm |
| Min. Scale Value | 0.1HR |
| Indication Of Hardness Value | Digital Display With Large LCD Screen |
| Net Weight | 98 KG |
| Overall Dimension | 522 x 220 x 729mm (L×W×H) |
| Power Supply | AC220V, 50Hz |
