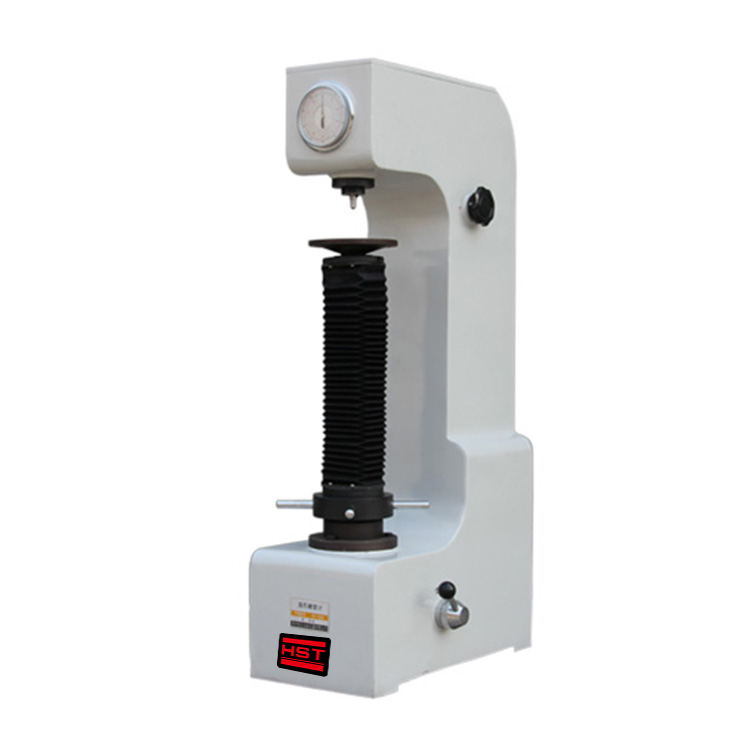

HR-150B High Stroke Manual Rockwell Hardness Tester
1.Application:
Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.
Wide range of applications, suitable for Rockwell Hardness Testing of hardening, quenching and other heat-treated material.
It mainly functions are as follows:
1.1. Lever Loading, manual operation, durable and reliable.
1.2. No friction spindle, high precision test force.
1.3. Precision hydraulic buffers, steady load.
1.4. Dial display the hardness value, HRA, HRB, HRC, and can choose other Rockwell Scale.
1.5. Accuracy according to GB / T230.2, ISO 6508-2 and American ASTM E18 standard.
2.Specifications:
3.Standard Accessories:
Large Flat Anvil: 1 PC.
Small Flat Anvil: 1 PC.
Large V-notch Anvil: 1 PC.
Diamond Cone Penetrator: 1 PC.
1/16" Steel Ball Penetrator: 1 PC.
Rockwell Standardized Block: 5 PCS.
Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.
Wide range of applications, suitable for Rockwell Hardness Testing of hardening, quenching and other heat-treated material.
It mainly functions are as follows:
1.1. Lever Loading, manual operation, durable and reliable.
1.2. No friction spindle, high precision test force.
1.3. Precision hydraulic buffers, steady load.
1.4. Dial display the hardness value, HRA, HRB, HRC, and can choose other Rockwell Scale.
1.5. Accuracy according to GB / T230.2, ISO 6508-2 and American ASTM E18 standard.
2.Specifications:
| Model | HR-150B |
| The initial test force | 98.07N(10kg) |
| Test Range | 20-88HRA, 20-100HRB, 20-70HRC |
| Test Force | 588.4, 980.7, 1471N (60, 100, 150kgf) |
| Max. Test Height | 400mm |
| Depth Of Throat | 160mm |
| Min. Scale Value | 0.5HR |
| Dimensions | 548 x 326 x 1025mm (21.6x12.9x40.5 inch) |
| Weight | Approx. 140kg / 308lb |
Large Flat Anvil: 1 PC.
Small Flat Anvil: 1 PC.
Large V-notch Anvil: 1 PC.
Diamond Cone Penetrator: 1 PC.
1/16" Steel Ball Penetrator: 1 PC.
Rockwell Standardized Block: 5 PCS.
