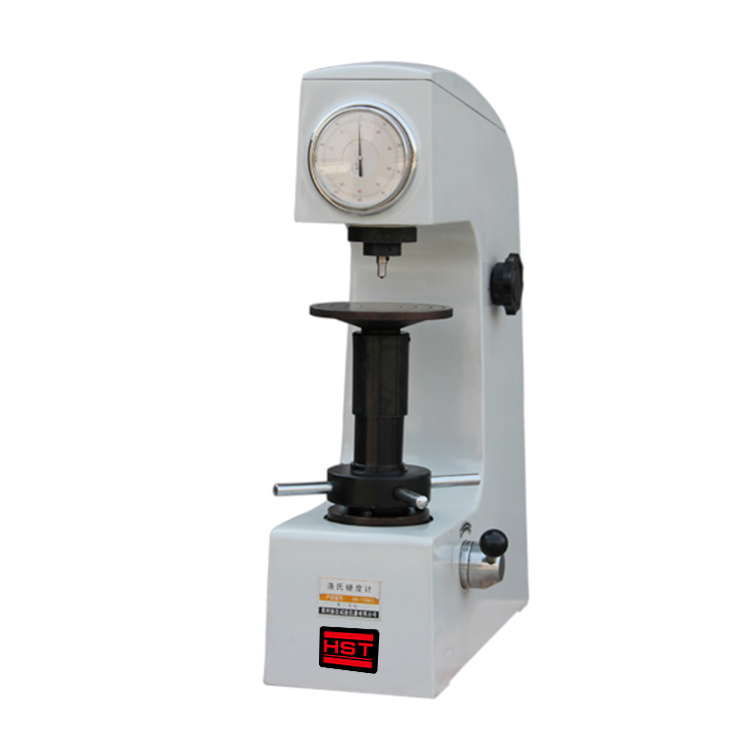

HR-150 Manual Plastic Rockwell Hardness Tester
1.Application:
HR-150 Manual Plastic rockwell hardness tester is a specialized test non-metallic, plastic, hard rubber, synthetic resin, friction material and soft metal Hardness Tester.
It mainly functions are as follows:
1.1. Lever Loading, manual operation, durable and reliable.
1.2. No friction spindle, high precision test force.
1.3. Precision hydraulic buffers, steady load.
1.4. Dial display the hardness value,HRE,HRL,HRM,HRR,and can choose other Rockwell Scale.
1.5. Accuracy according to JB/T7409 standard.
2.Technical Specifications:
HR-150 Manual Plastic rockwell hardness tester is a specialized test non-metallic, plastic, hard rubber, synthetic resin, friction material and soft metal Hardness Tester.
It mainly functions are as follows:
1.1. Lever Loading, manual operation, durable and reliable.
1.2. No friction spindle, high precision test force.
1.3. Precision hydraulic buffers, steady load.
1.4. Dial display the hardness value,HRE,HRL,HRM,HRR,and can choose other Rockwell Scale.
1.5. Accuracy according to JB/T7409 standard.
2.Technical Specifications:
| Model | HR-150 |
| Measuring Range |
70-100HRE, 50-115HRL, 50-115HRM, 50-115HRR. |
| Total Test Force | 588.4N, 980.7N, 1471N (60, 100, 150kgf) |
| Max. Height Of Specimens | 170mm |
| Distance From Indenter’s Center To Outer Wall | 135mm |
| Hardness Resolution | 0.5HR |
| Machine Size(DxWxH) | 466×238×630mm |
| Weight | 70 KG |
