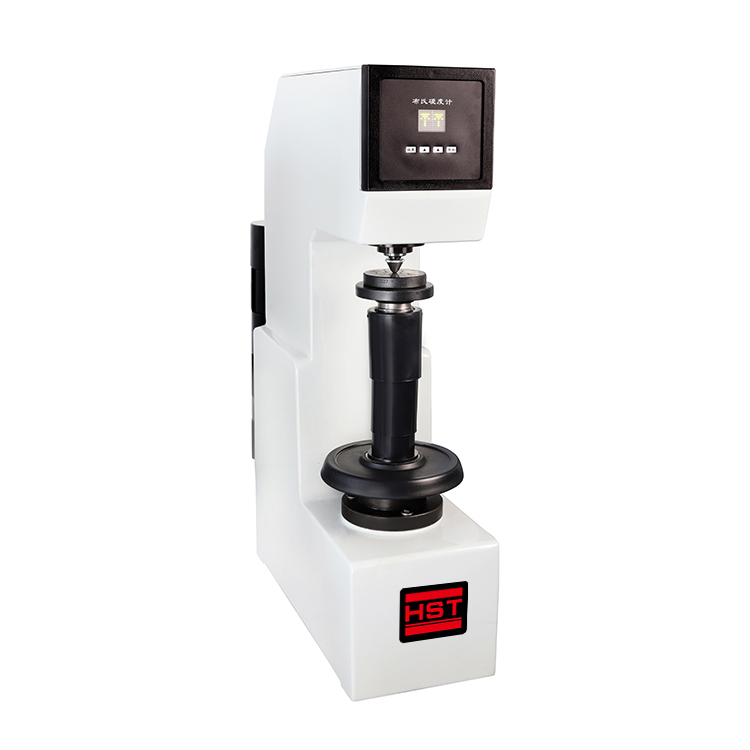

HB-3000B Digital Display Brinell Hardness Tester
It is used to determine un-quenched steel.,Cast iron.,Non-ferrous metal and the soft texture of bearing metal materials brinell hardness value.
Standards:
GB/T231.2, ISO6506-2,ASTM E10 standard
Request A Quote Files DownloadHB-3000B Digital Display brinell hardness tester
Application:
HB-3000B Brinell Hardness Tester used electronic directional control switch. Can be used to determine un-quenched steel.,Cast iron.,Non-ferrous metal and the soft texture of bearing metal materials ' brinell hardness value.Features:
High precision reading microscope measurement system
Mechanical structure patent design, low noise with extremely low failure rate
Electronic reversing switch
Accuracy accord with GB/T231.2, ISO6506-2 and the United States ASTM E10 standard
TechnicalParameter:
| Model | HB-3000B |
| Testing Range | 8-650HBW |
| Testing Force |
1838.8, 2415.8, 7355.3, 9807, 29421N (187.5, 250, 750, 1000, 3000kgf) |
| Max Testing Height | 230mm |
| Distance Between Pressing Head Center And The Wall | 120mm |
| Power Supply | AC 380V/50HZ or 220V/50HZ |
| Size | 466 x 238 x 630mm |
| Weight | 210 KG |
