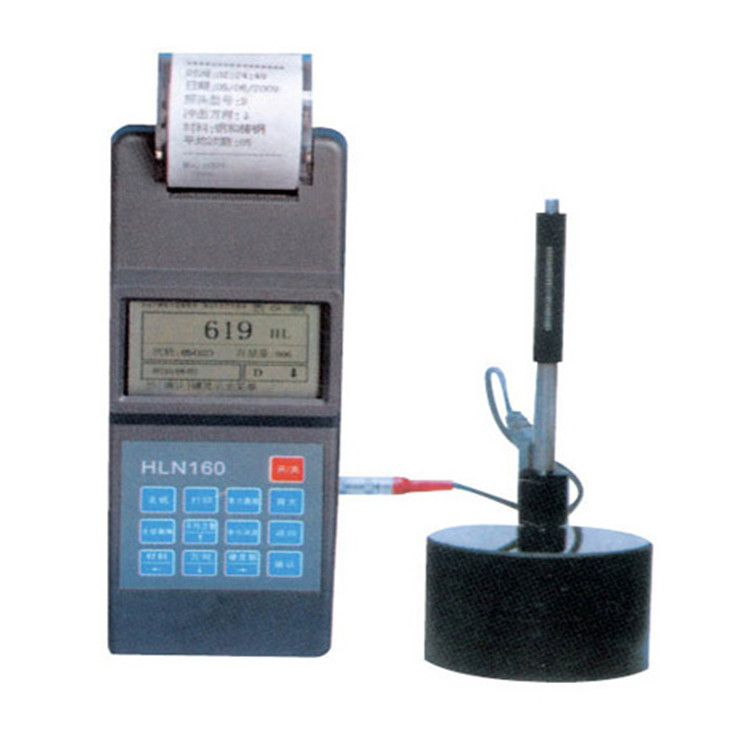

HLN-160 Portable Lee Hardness Tester
Application:
Hardness measurement of products for mass producing
Site hardness test for machinery after installation or permanent assembly parts.
Hardness measurement of heavy parts.
Hardness measurement of the mould cavity.
Hardness measurement of small space machinery.
Failure analysis of equipment.
Distinguishing metal materials in stock.
Hardness controlling test for the heat treatment of anneal,temper,quench,etc
Tech parameter
Hardness measurement of products for mass producing
Site hardness test for machinery after installation or permanent assembly parts.
Hardness measurement of heavy parts.
Hardness measurement of the mould cavity.
Hardness measurement of small space machinery.
Failure analysis of equipment.
Distinguishing metal materials in stock.
Hardness controlling test for the heat treatment of anneal,temper,quench,etc
Tech parameter
| Testing range |
150-960)HLD (17-68.5)HRC (19-651)HB， (80-976)HV (30-100)HS，(59-85)HRA (13-100)HRB |
| Testing degree | 360°C |
| Testing material | 10 kinds |
| Data store | 250 group (impact tiem 1~26) |
| Software calibration range | ±15HLD |
| Hardware calibration range | ±30HLD |
| Working voltage | 3.3V |
| Continuous working time | 40h |
| Interface standards | RS232 |
| Size | (160×80×42)mm |
| Weight |
0.3kg |
