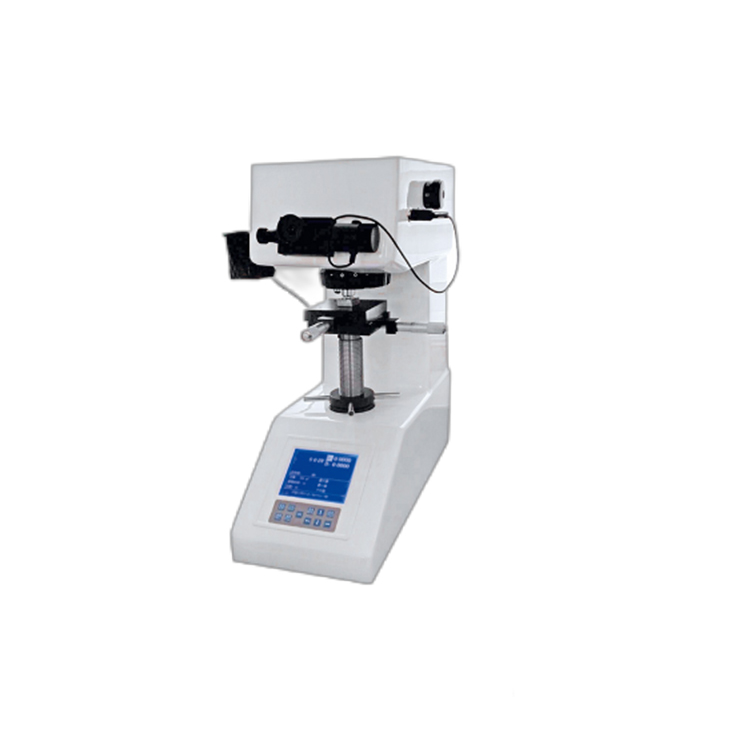

HV-1000 Micro Hardness tester
HV-1000 Micro hardness tester Adopt the shell integral casting processing, perforation alignment with a knife straight, to ensure the concentricity of each hole position coaxiality, for the high precision and high stability of the machine set a good foundation. The light source of the durometer adopts the special high quality imaging light source system on the Metallographic Microscope, the brightness of the light field is uniform and clear, thus reducing the measurement error of the print indentation. The operation interface adopts a menu structure. The hardness scale HV or HK can be selected on the operation panel, and the hardness value tested can be entered and displayed manually. Various hardness values can be converted to each other. Manual tower positioning.
Technical Parameters
Technical Parameters
| Scale of hardness | Vickers, nouvelle |
| Test force | 10-25-50-100-200-300-500-1000gf |
| Test force selection mode | Manual |
| Carried standard | In accordance with en-iso6507, ASTM E384&E92 and JIS standards |
| Loading and unloading mode | Automatic |
| Dwell Time | Adjustable 0 to 60 seconds |
| Turret | Manual |
| Micrometer eyepiece multiple | 10X |
|
Me measurement resolution |
0.25µm (drum reading) |
| Objective magnification | 10X 40X |
|
Total magnification |
100X（objective）400X(measurement) |
| measurement range | 150µm |
