Product details:
1. Outlook
● A totally new appearance with industrial style.
● Solved the problem that the rubber paint of TIME5120 is sticky and hard to clean after continuous usage.
● Redesign the silicone physical buttons.
● Add a lanyard to greatly enhance the portability of this testing tool.
2. Performance
● The display is changed from LCD without backlight to OLED screen, high brightness, high contrast and clear reading even in dim environment.
● Bluetooth is added to connect with Bluetooth printer and Bluetooth mobile phone (Android system).
● When connected to a Bluetooth mobile phone, it is convenient to set the parameters, read the measurement data or historical data on the phone.
● For setting the parameters, new options such as hardness conversion tables, auto save, auto elimination of coarse error are added.
● Data storage of 100 groups is supported (only can be read by mobile phone APP).

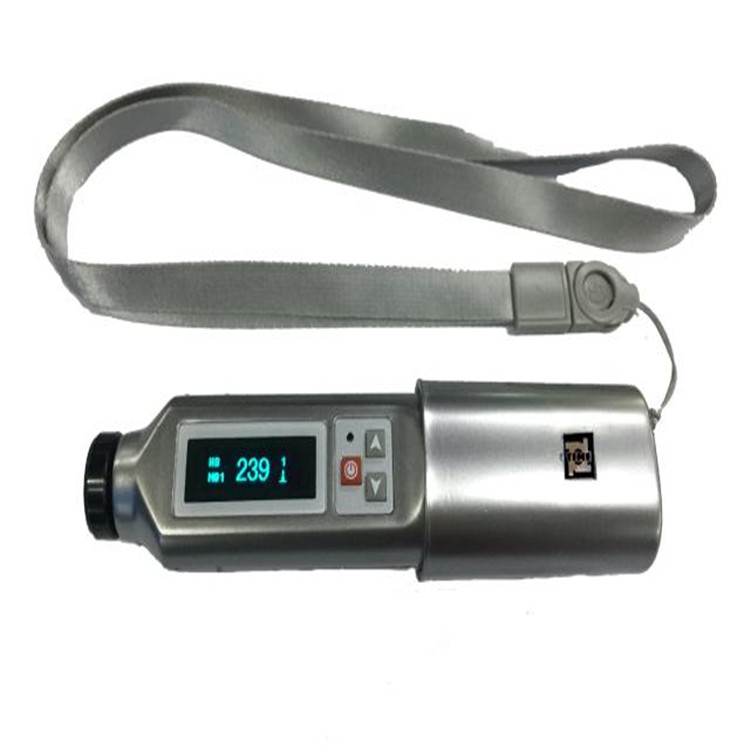

Features of TIME510D integrated hardness tester
● Excellent portability for testing anywhere anytime.
● OLED display that can read measuring values clearly in dark environment.
● Real-time measurement data can be printed out via Bluetooth wireless printer
● The instrument parameters can be set through the mobile terminal APP.
● Software calibration
● Rechargeable lithium battery, with charging indicator.
Specification details:
Standard impact device |
D integrated |
Hardness scales |
HL,HB,HRA,HRB,HRC,HV,HS |
Measuring range |
(170~960)HLD |
Accuracy |
6HLD |
Surface roughness of workpieces |
≤1.6µm(Ra) |
Max. workpiece hardness |
940HV |
Min.thickness of hardened layers |
0.8mm |
Charging time |
2h |
Continuous working time |
8h |
Power supply |
6V/500mA |
