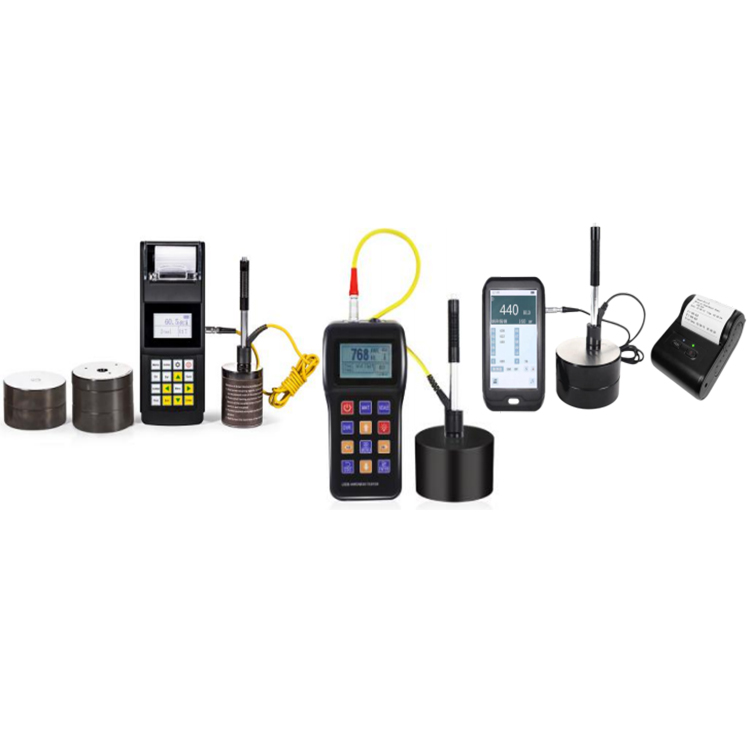

HST Portable Leeb Hardness Tester
Application:
1.Die cavity of molds 2.Bearings and other parts
3.Failure analysis of pressure vessel, steam generator and other equipment
4.Heavy work piece 5.The installed machinery and permanently assembled parts
6.Testing surface of a small hollow space 7.Material identification in the warehouse of metallic materials 8.Rapid testing in large range and multi-measuring areas for large-scale work piece.
Technic Parameter：
|
Model |
HST5100 |
HST5200 |
HST5300 |
|
Measuring range |
( 170-960)HLD,( 17-68.5)HRC,( 19-651)HB,(80-97 6)HV,(30- 100)HS,(59-85)HRA,( 13- 100)HRB |
||
|
Measuring direction |
360° |
||
|
Accuracy |
+/- 4 HLD |
||
|
Hardness Scale |
HL,HB,HRB,HRC,HRA,HV,HS |
||
|
Display |
segment LCD |
segment LCD |
5 Touch LCD |
|
Data memory |
Max 500 groups (relative to impact times 32～1) |
||
|
Communication interface |
RS232 |
RS232 |
RS232 |
|
Communication interface |
USB2.0 |
USB2.0 |
USB2.0 |
|
Printer |
exclude |
include |
include |
