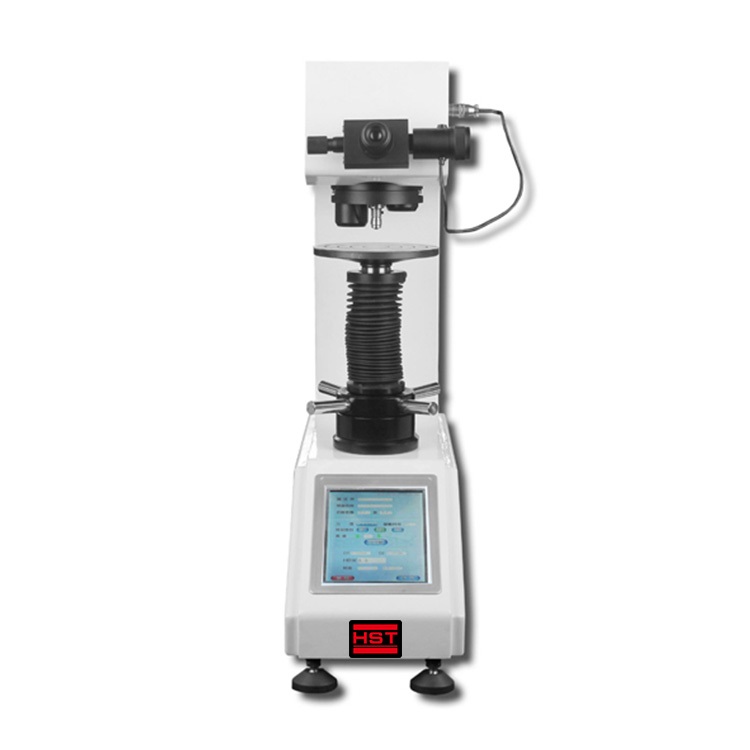

Objective with digital encoder, when test D1,D2 value, LCD display show hardness value ,D1 and D2 value directly.
Specifications:
Model
HBS-3000TZ
HBS-62.5TF
HBS-62.5TZD
Testing Range
8-650HBW
Testing Force
62.5kgf(612.9N), 100kgf(980.7N), 125kg
f(1226N), 187.5kgf(1839N),250kgf(245
2N),500kgf(4903N),750kgf(7355N), 100
0kgf(8907N), 1500kgf(14710N),
3000kgf(29420N)
1Kgf(9.8N),2.5Kgf(24.5N),5Kgf(49N),6.25K
gf(61.29N), 10Kgf(98N), 15.625Kgf(153.23N
),25Kgf(245.2N),30Kgf(294N),31.25Kgf(30
6.47N) ,62.5Kgf(612.94N)
Max. Height of sample
200mm
180mm
Duration time
1~99S
Measuring device resolution
0. 1um
Dwell time
0~60s
Distance Between Pressing Head Center And The Wall
155mm
Data output
LCD display
Microscope
20× Digital micrometer eyepiece
