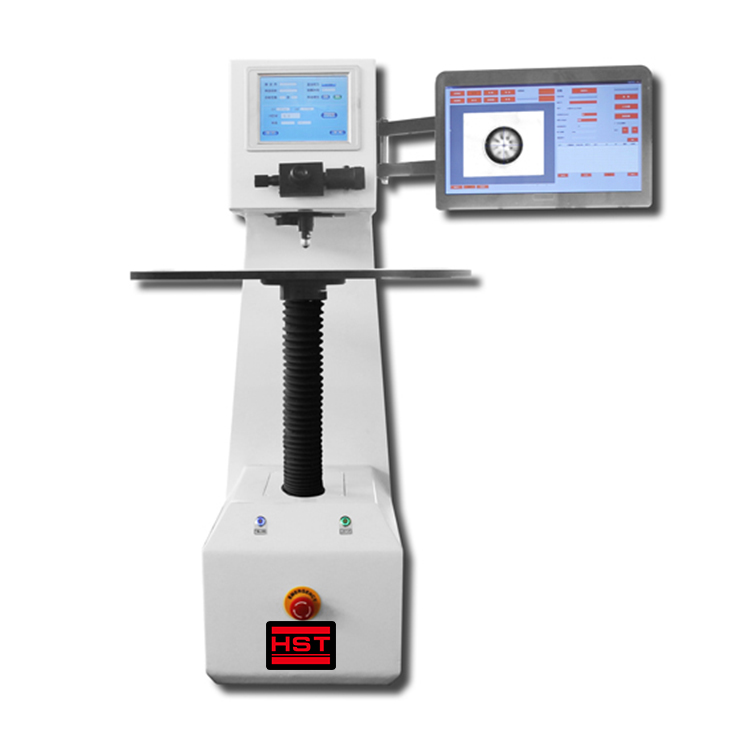

HBS-3000DW Electronic Digital Brinell Hardness Tester with software

Features

Over-position automatic protection, automatic experiment process, unmanned operation error, large LCD liquid

crystal display, intelligent menu prompts, convenient operation, high-precision reading microscope

measurement system.electrical integrated product with a precise mechanical structure and a

microcomputer-controlled closed-loop system. feedback by a 0.5‰ precision pressure sensor, CPU control

and can automatically compensate for the test force lost in the test.

Specifications:

Model	HBS-3000DW
Testing Range	8-650HBW
Testing Force	1.839、2.452、7.355、9.807、29.42KN（187.5、250、750、 1000 、3000KGF）
Brinell hardness scale	HBW2.5/62.5 、HBW2.5/187.5 、HBW5/125 、HBW5/750 、 HBW10/100 、HBW10/1500 、HBW10/3000 、HBW10/250、 HBW10/500 、HBW10/1000
Max . Height of sample	230mm
Measuring device resolution	0. 1um
Dwell time	0~60s
Distance Between Pressing Head CenterAnd The Wall	120mm
Dimension	700268842 mm
Weight	210kg
Voltage	AC220V,50Hz
