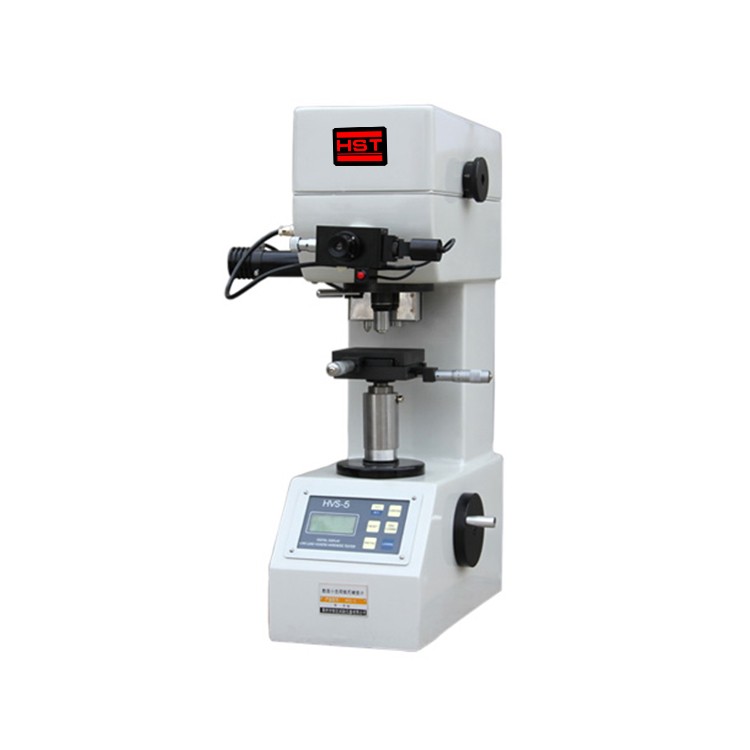

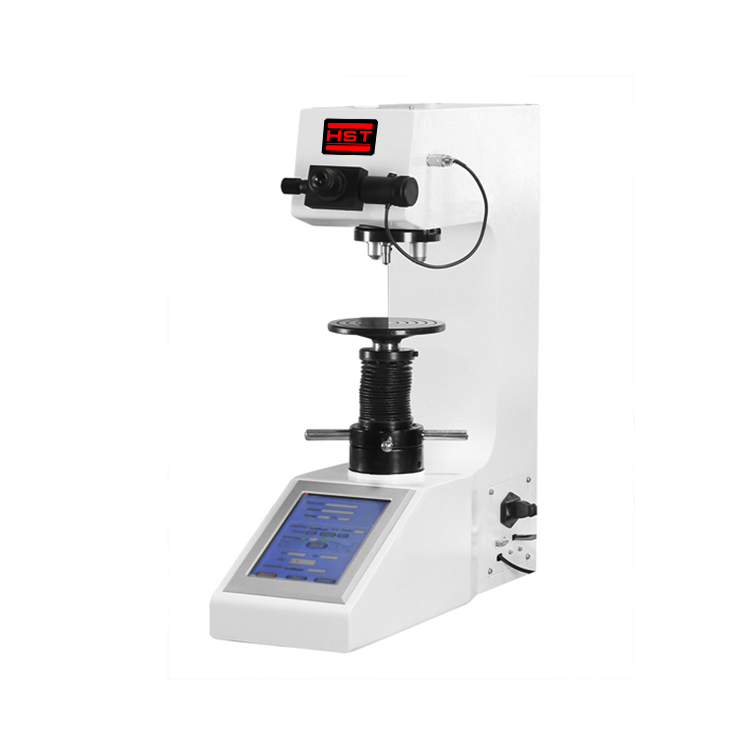

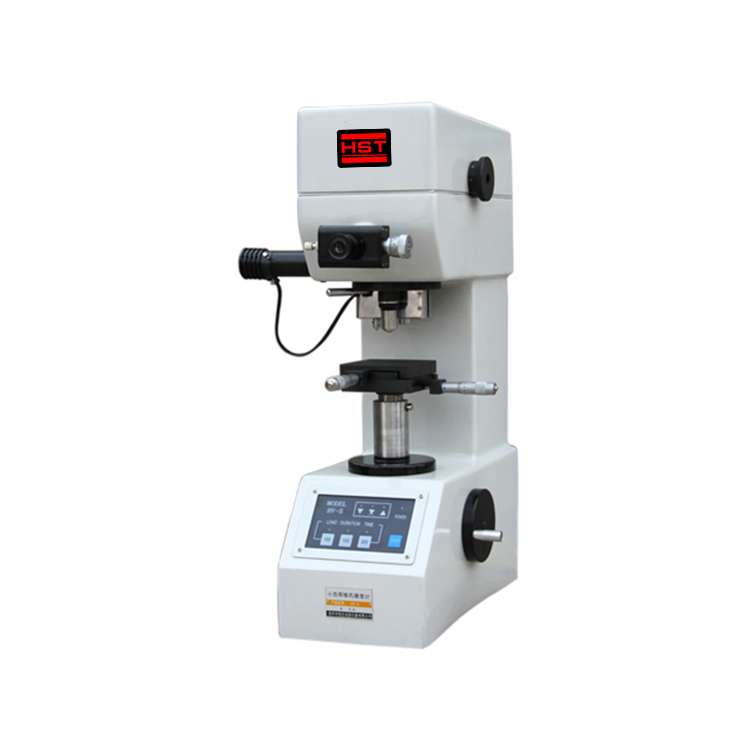

HV/HVS/HVS-5,10,30,50T/Z Vicker Hardness Tester
Application:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Technical Parameters
Model
HV-5/10/30/50 HV-5/10/30/50Z
HVS-5/10/30/50 HVS-5/10/30/50Z
HVS-5/10/30/50T HVS-5/10/30/50ZT
HVS-5/10/30/50TH HVS-5/1-/30/50ZTH
Display model
Small LCD digital display
Big LCD digital display
touch screen
8’ touch screen
Turret Type
Manual (HV-5, 10,30,50/HVS-5, 10,30,50/HVS-5, 10,30,50T/HVS-5, 10,30,50TH) Automatic (HV-5, 10,30,50Z/HVS-5,10,30,50Z/HVS-5, 10,30,50TZ/HVS-5, 10,30,50THZ)
Test force
5/5Z/5ZTH 0.3Kgf(2.91N), 0.5Kgf(4.9N), 1Kgf(9.8N), 2Kgf(19.6N), 3Kgf(29.4N), 5Kgf(49.0N)
10/ 10Z/ 10ZTH 0.3Kgf(2.91N)0.5Kgf(4.9N),
1Kgf(9.8N),
2Kgf(19.6N),
3Kgf(29.4N),
5Kgf(49.0N)
10Kgf(98.0N)
30/30Z/30ZTH 1.0 Kgf(9.8N) 、 2.0Kgf(19.6N)、2.5Kgf(24.5N) 、 3.0Kgf(29.4N) 、 5.0Kgf(49.0N) 、 10.0Kgf(98.0N)、 20.0Kgf(196N) 、 30.0Kgf(294N)、
50/50Z/50ZTH
1.0 Kgf(9.8N) 、 2.0Kgf(19.6N)、 2.5Kgf(24.5N)、 3.0Kgf(29.4N)、5.0Kgf(49.0N) 、 10.0Kgf(98.0N) 、 20.0Kgf(196N) 、 30.0Kgf(294N) 、 40.0Kgf(392.0N)、 50.0Kgf(490N)
Loading and unloading mode
Automatic
Dwell Time
Adjustable 0 to 60 seconds
Conversion Scale
Rockwell, Brinell
Hardness measuring range
8~2900HV
Amplification of Test Microscope
200X ,400X
100X ,200X
Max. Height of Specimen
160mm
Depth at center line
135mm
RS232,Built-in print,data statistics
No
Yes
