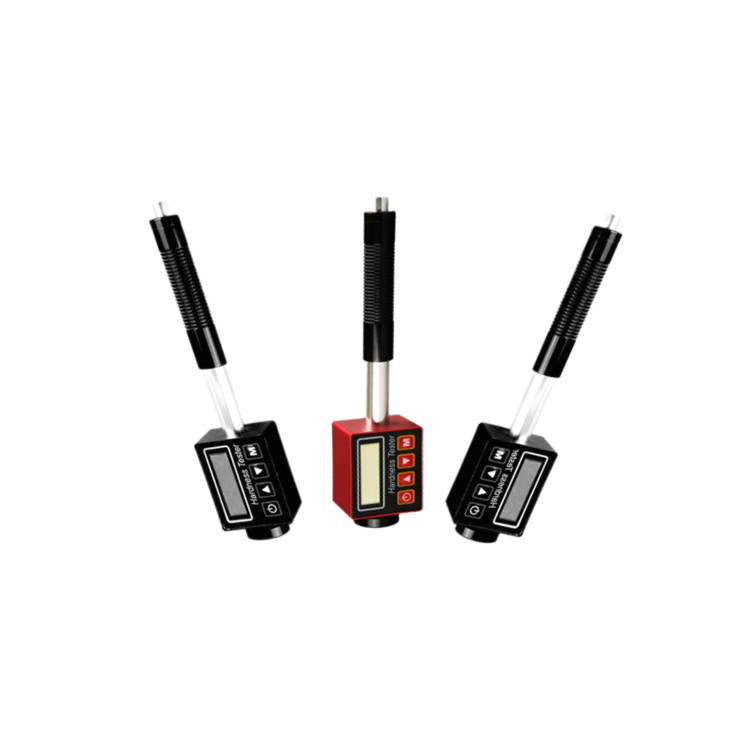

HST 5106 Pen Type Leeb Hardness Tester
Main Features
This series leeb hardness testers are the portable hardness testing instruments, which integrated the smartest NDT technology and the smallest dimension. The hardness tester is a revolutionary product that can test most of the metal objects. With the pen type design and innovative D/DL impacting probes, the HL series products provide convenient and reliable experience of testing.
With its small size, impressive design, competitive price, convenient using experience, The Leeb hardness tester can wildly be used in various situations.
Techical Data
Testing direction
Highly accurate in any impact direction
Testing Range
( 170-960)HLD,
( 17.9-69.5)HRC,
( 19-683)HB,(80- 1042)HV,
(30.6- 102.6)HS,(59. 1-88)HRA,
( 13.5- 101.7)HRB
Hardness Standards
HL,HV,HRA,HRC,HRB,HB,HV,HS
Accuracy
HLD:±0 5% (800HLD)
Repeatability Value
HLD:0 8% (800HLD)
Resolution
128*64 OLED display
Dimensions
148mm*30mm*30mm
Power Supply
Rechargeable lithium battery
Working Hours
About 10 hours
Operating temperature
10-50℃
S
-30 ℃ - 60 ℃
