Application:
Used to ascertain if the work piece has been heat-treated and check the effect of heat treatment. Used to ascertain if the work piece is made and processed by improper alloys .
Used for testing the work pieces with overlength, overweight or assemblies.

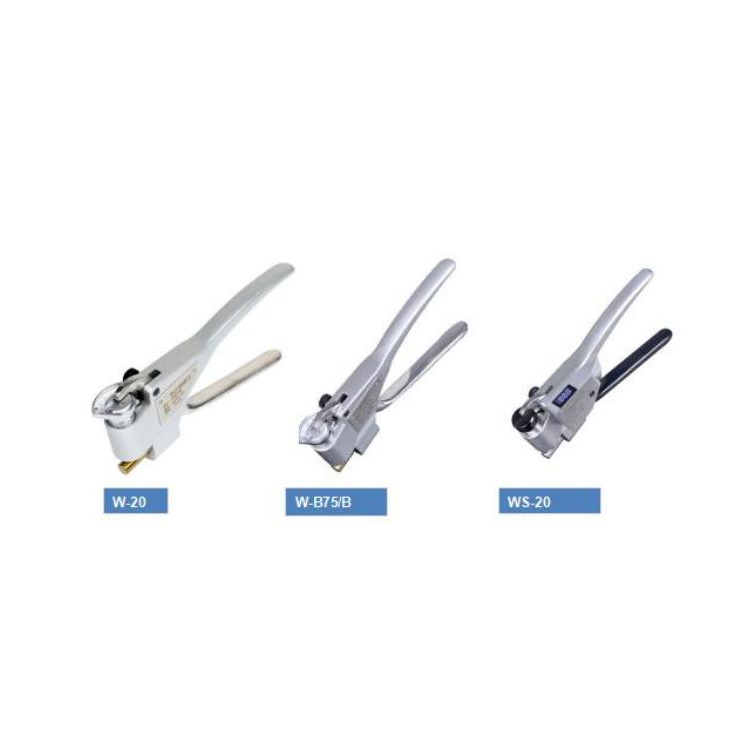

Used for production inspection, acceptance inspection and quality monitoring and inspection Webster Aluminum Alloy Tester is a portable instrument which can perform on-site hardness testing
Technical Parameter:
NO.
Type
Material
Hardness Test Range
Sample Size(mm)
1
W-20
Aluminium Alloy
25~ 110 HRE
58~ 131 HV
Thickness 0.6-6
Inner diameter < 10
2
W-20a
Thickness 0.6- 13
Inner diameter < 10
3
W-20b
Thickness 0.6-8
Inner diameter >6
4
W-B75
Hard or Semi-hard Brass, Super Hard Aluminium Alloy
63~ 105 HRF
Thickness 0.6-6
Inner diameter > 10
5
W-B75b
Thickness 0.6-8
Inner diameter >6
6
W-BB75
Soft Brass,Red copper
18~ 100 HRE
Thickness 0.6-6
Inner diameter > 10
7
W-BB75b
Thickness 0.6-8
Inner diameter >6
8
W-B92
Cold Rolled steel,
Stainless steel
50~92 HRB
Thickness 0.6-8
Inner diameter > 10
