Main Function & Features:

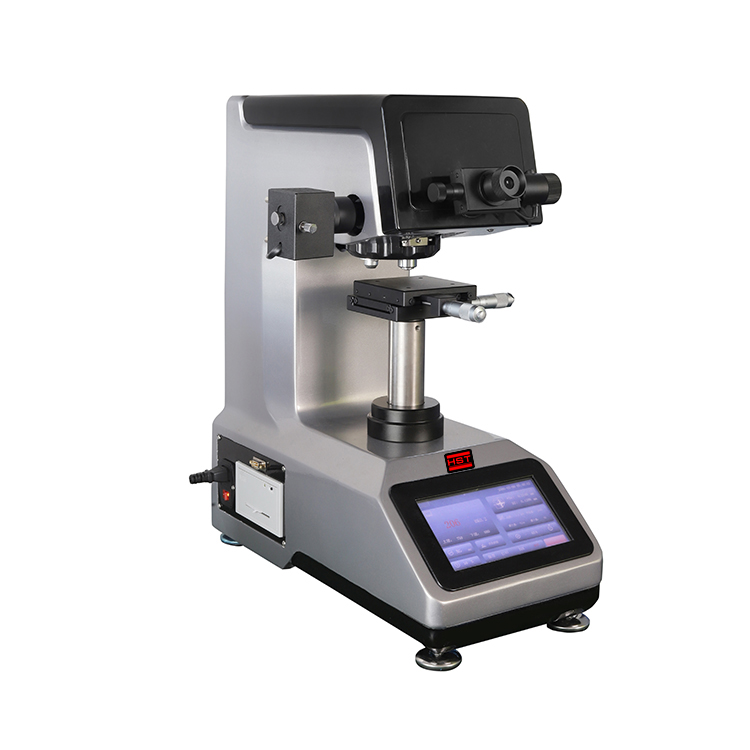

This product adopts a unique and precise design on machinery, optics and light source to make the indentation imaging clearer and the measurement more accurate. It adopts a new color 7-inch touch screen display; The tested hardness value is automatically calculated and automatically displayed.
Various hardness values can be converted mutually. LCD display readout, built-in printer and RS-232 interface
Specification:
Model
HVS-1000TH
HVS-1000THZ
Display model
7-inch touch screen display
Hardness values
Direct Display
Exchange Scales
HRA 、HRB 、HRC 、HRD 、HRF 、HV 、HK 、HBW 、HR15N 、HR30N、 HR45N 、HR15T 、HR30T 、HR45T
Test force
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N) 、200gf (1.96N)、
300gf (2.94N) 、500gf(4.9N) 、1kgf (9.8N)
Turret Type
Manual
Automatic
Loading and unloading mode
Automatic
Dwell Time
Adjustable 0 to 60 seconds
Micrometer eyepiece multiple
10X(optional 15X)
Me measurement resolution
0.25µm (drum reading)
Objective magnification
10X 40X
Total magnification
100X (objective)400X(measurement)
measurement range
150µm
light source
Halogen lamp (brightness adjustable)
Hardness conversation
Brinell, rockwell, surface rockwell
Max. Height of Specimen
110mm
Depth at center line
110mm
XY test table size
100X100mm Max. movement:25*25mm
