Production Introduction:
Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.
Technical Parameters

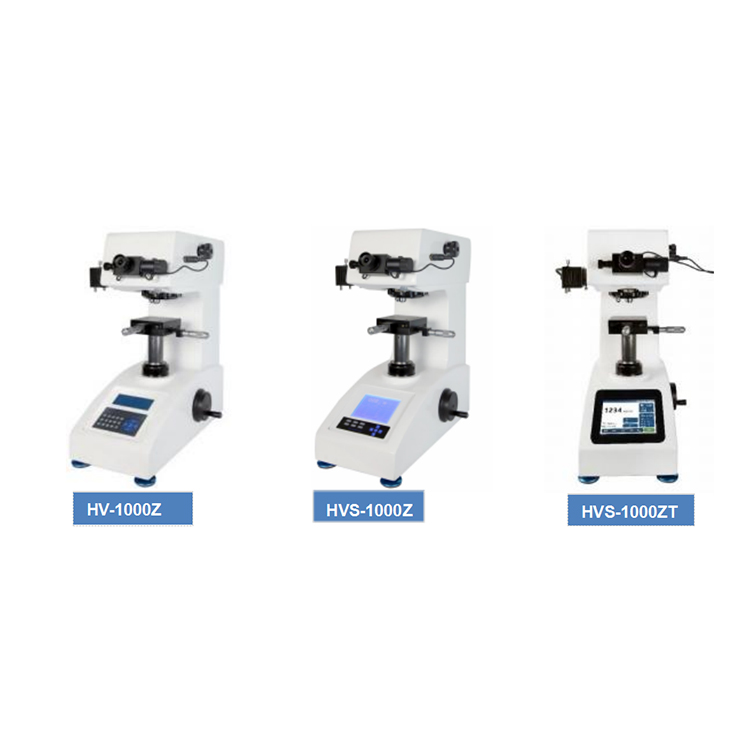

Model
HV-1000Z
HVS-1000Z
HVS-1000ZT
Display model
Small LCD
digital display
Big LCD
digital display
touch screen
Digita Display
Hardness values
Input D1,D2
Direct display
Direct Display
Exchange Scales
HRA 、HRB 、HRC 、HRD 、HRF 、HV 、HK 、HBW 、HR15N 、HR30N、 HR45N 、HR15T 、HR30T 、HR45T
Test force
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N) 、200gf (1.96N)、
300gf (2.94N) 、500gf(4.9N) 、1kgf (9.8N)
Turret Type
Automatic
Loading and unloading mode
Automatic
Dwell Time
Adjustable 0 to 60 seconds
Micrometer eyepiece multiple
10X(optional 15X)
Me measurement resolution
0.25µm (drum reading)
Objective magnification
10X 40X
Total magnification
100X (objective)400X(measurement)
measurement range
150µm
light source
Halogen lamp (brightness adjustable)
Hardness conversation
Brinell, rockwell, surface rockwell
Max. Height of Specimen
80mm
Depth at center line
95mm
XY test table size
100X100mm Max. movement:25*25mm
Min. Measuring Unit
0.01μm
RS232,Built-in print,data statistics
No
Yes
Yes
