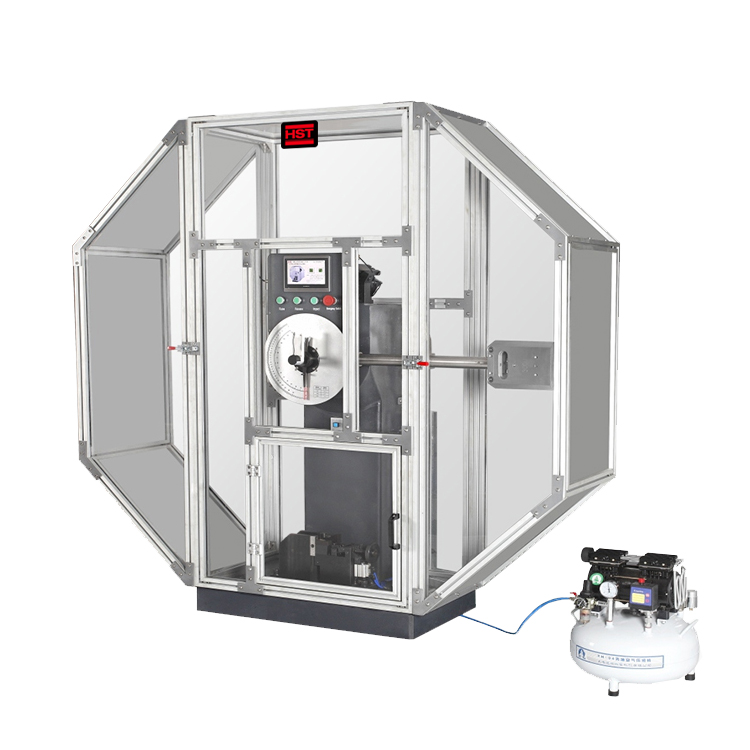

Application:
Impact on metals, Charpy and Izod, both non-instrumented and instrumented
Wedge impact test of adhesive bonds
Brugger method test of toothed gear wheels
Servo motor driven pendulum can stop at any position, realizing different angle/energy impact test for R&D use
Equipped with cooling system, I can perform low temperature test down to -180℃
Standards
ASTM E23, ASTM E1820, ASTM E2298, AS 1544, ISO 148, EN10045, ISO 14556, ZF 15-53, ISO 11343, JIS Z 2242, JIS B 7722, GOST 9454, ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-200,ISO 138,EN10045.
Specifications:
MODEL
JBW-150G
JBW-300G
JBW-450G
Maximum impact energy
150
300
450
Angle resolution
0.025°
Distance from the axis of support to the center of percussion
750mm
Velocity of striking
5.24m/s
Angle of striking
30°~150°, adjustable
Anvil
Span
40mm
Radius of curvature of supports
1mm
Angle of taper of supports
11°±1°
Striking knife
Radius of striking edge
2mm(R2) or 8mm(R8)
Angle of striking tip
30°
Thickness of striker
16mm
Dimension (with protection shield)
1960mm×680mm×2000mm
Weight
800kg
Power supply
1-phase, 220±10%VAC, 50Hz
Power consumption
800W
