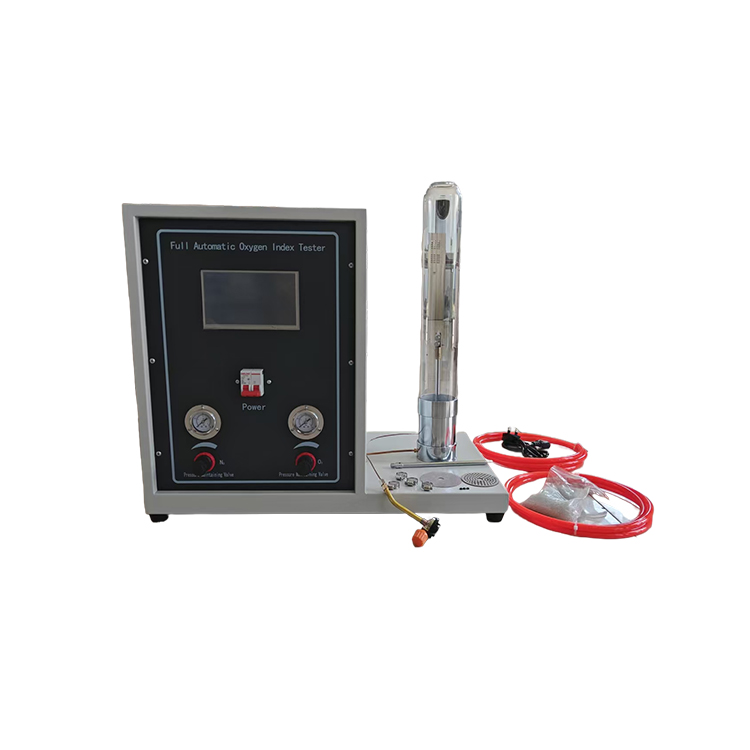

HST-YZ5 Fully Automatic Touch Screen Control Oxygen Index Tester
Applicable to plastics, rubber, fiber, foam, film and textile materials such as combustion performance measurement
Standards:
ASTM D 2863, ISO 4589-2, NES 714, GB/T 5454, GB/T 10707, GB/T 8924, GB/T 16581, NB/SH/T 0815, TB/T 2919, IEC 61144, ISO 15705, ISO 4589-2.
Request A Quote Files DownloadScope of application
Applicable to plastics, rubber, fiber, foam, film and textile materials such as combustion performance measurement
According to the standard:
Design standard: GB/T 2406.2
Compliant standards: ASTM D 2863, ISO 4589-2, NES 714, GB/T 5454, GB/T 10707, GB/T 8924,
GB/T 16581, NB/SH/T 0815, TB/T 2919, IEC 61144, ISO 15705, ISO 4589-2.
Specification
|
Model |
HST-YZ3 |
HST-YZ5 |
|
Control Method |
Keyboard |
Touch Screen |
|
Oxygen concentration range |
0~100% |
|
|
Accuracy Class |
0.4 |
0.2 |
|
Gas flow range |
0~10L/min（adjustable） |
0~20L/min（adjustable） |
|
Oxygen concentration accuracy |
±0.1% |
|
|
Combustion cylinder |
Height: 400mm Inner diameter: 75mm |
Height: 500mm Inner diameter: 75mm |
|
Flow Velocity in Combustion Cylinder |
40mm±2mm/s |
|
|
Response time |
<5s |
|
|
Input pressure |
0.2～0.3Mpa |
0.2～0.4Mpa |
|
Gas of Ignition system |
Propane or Butane |
|
|
Flame Height |
5~60mm adjustable |
|
|
Flowmeter range |
1-15L/min adjustable |
1-20L/min adjustable |
|
Working pressure of N2 and O2 |
0.1～0.15Mpa |
|
|
Power supply |
AC220V 50Hz 1Phase |
|
|
Dimensions |
660mm×350mm×610mm |
|
|
Package Weight |
55kg |
|
