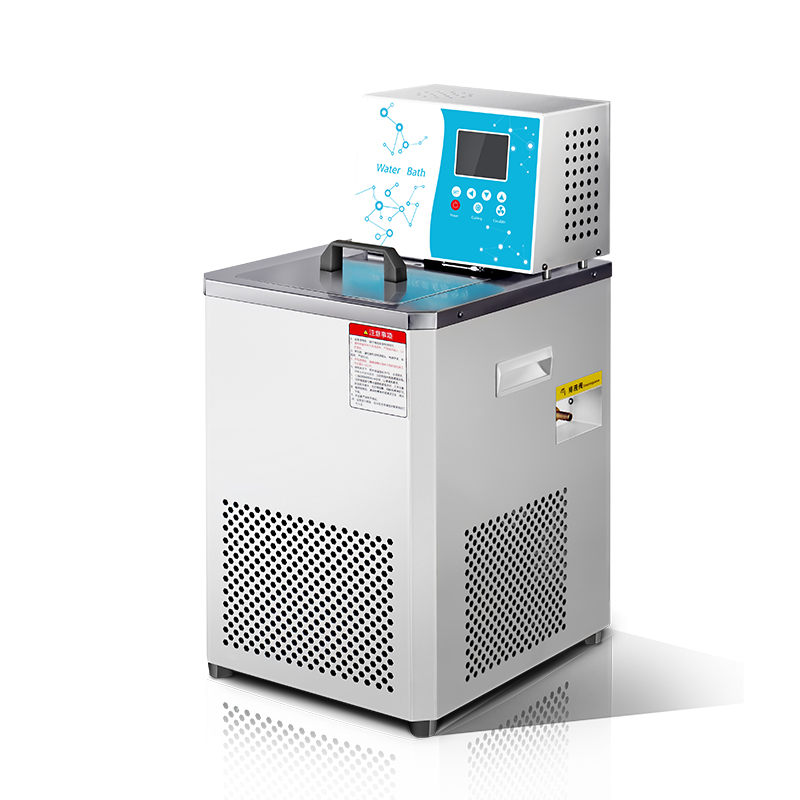

HST-HX Low-temperature constant temperature circulator
Widely used in universities, colleges, and enterprises in the fields of biology, chemical engineering, chemistry, pharmaceuticals, life sciences, and physical property testing.
Standards:
Request A Quote Files DownloadProduct Introduction
Widely used in universities, colleges, and enterprises in the fields of biology, chemical engineering, chemistry, pharmaceuticals, life sciences, and physical property testing. It provides users with a controlled, uniform, and constant temperature source for conducting constant temperature experiments or tests on experimental samples or manufactured products. It can also serve as a direct heating or cooling, or auxiliary heating or cooling heat source or cold source.
Product Features
● Latest independently developed temperature control technology, equipped with a high-standard PT100 and all imported electronic components.
● The software system can correct errors between the displayed temperature and the actual temperature, ensuring accurate temperature readings.
● Standard large-screen LCD display, providing a comprehensive view of multiple data points, with a temperature display resolution of up to 0.01℃.
● Over-temperature protection and over-temperature alarm; the over-temperature alarm temperature can be set, and the load can be automatically cut off when the temperature exceeds the limit.
● Timer function; the total operating time of the equipment can be set, and the load will be automatically cut off after the set time.
● Concealed cooling coil design ensures more usable space within the tank.
● Intelligent software ensures strong temperature stability. PID control automatically adjusts parameters to the optimal level for different media, and users can also manually readjust parameters.
● Software digital locking controls all system settings to prevent unauthorized operation and ensure accurate experimental data.
● High-efficiency, fully enclosed compressor cooling provides rapid cooling and multiple protections against overheating and overcurrent.
● Standard internal and external circulation function. The external circulation inlet and outlet pipes have an outer diameter of 10mm, meeting various user needs in different scenarios.
● Non-standard customization is supported.
Optional Accessories:
● Liquid Level Protection System – Forces load shutdown when the liquid level exceeds the limit, protecting users' experiments.
● RS485 Communication Interface – Connects to a computer or other host computer for device control and data viewing via software.
● Multi-Point Correction Function – Simultaneously corrects multiple temperature points to avoid temperature differences caused by sensor linearity errors.
● External PT100 – Enables precise temperature control for external circulation.
● Support – Allows different containers to be placed in the tank without being submerged in the constant-temperature liquid.
Technical Specifications:
|
Model |
Temperature Range（℃） |
Resolution （℃） |
Fluctuation（±℃） |
External Dimensions |
Power（kw） |
Volume(L) |
Pump flow rate（L/min） |
Head（m） |
|
HX-08 |
0-100 |
0.01 |
0.05 |
320*370*675 |
1.3 |
8 |
13 |
3 |
|
HX-0508 |
-5-100 |
0.05 |
1.3 |
|||||
|
HX-1008 |
-10-100 |
0.05 |
1.4 |
|||||
|
HX-2008 |
-20-100 |
0.05 |
320*370*765 |
1.4 |
||||
|
HX-3008 |
-30-100 |
0.05 |
400*450*940 |
1.6 |
||||
|
HX-4008 |
-40-100 |
0.05 |
1.8 |
|||||
|
HX-010 |
0-100 |
0.05 |
320*370*765 |
1.6 |
10 |
13 |
||
|
HX-0510 |
-5-100 |
0.05 |
1.6 |
|||||
|
HX-1010 |
-10-100 |
0.05 |
1.6 |
|||||
|
HX-2010 |
-20-100 |
0.05 |
1.7 |
|||||
|
HX-3010 |
-30-100 |
0.05 |
400*450*940 |
1.7 |
||||
|
HX-4010 |
-40-100 |
0.05 |
450*540*990 |
2.0 |
||||
|
HX-015 |
0-100 |
0.05 |
320*370*765 |
2.1 |
15 |
13 |
||
|
HX-0515 |
-5-100 |
0.05 |
2.1 |
|||||
|
HX-1015 |
-10-100 |
0.05 |
2.2 |
|||||
|
HX-2015 |
-20-100 |
0.05 |
2.3 |
|||||
|
HX-3015 |
-30-100 |
0.05 |
400*450*940 |
2.5 |
||||
|
HX-4015 |
-40-100 |
0.05 |
450*540*990 |
3.0 |
||||
|
HX-020 |
0-100 |
0.05 |
400*450*1040 |
2.3 |
20 |
13
|
||
|
HX-0520 |
-5-100 |
0.05 |
2.4 |
|||||
|
HX-1020 |
-10-100 |
0.05 |
2.5 |
|||||
|
HX-2020 |
-20-100 |
0.05 |
2.6 |
|||||
|
HX-3020 |
-30-100 |
0.05 |
2.8 |
|||||
|
HX-4020 |
-40-100 |
0.05 |
450*540*1090 |
3.2 |
||||
|
HX-030 |
0-100 |
0.05 |
450*540*990 |
2.3 |
30 |
13
|
||
|
HX-0530 |
-5-100 |
0.05 |
2.4 |
|||||
|
HX-1030 |
-10-100 |
0.05 |
2.5 |
|||||
|
HX-2030 |
-20-100 |
0.05 |
2.7 |
|||||
|
HX-3030 |
-30-100 |
0.05 |
3.0 |
|||||
|
HX-4030 |
-40-100 |
0.05 |
450*540*1090 |
3.5 |
