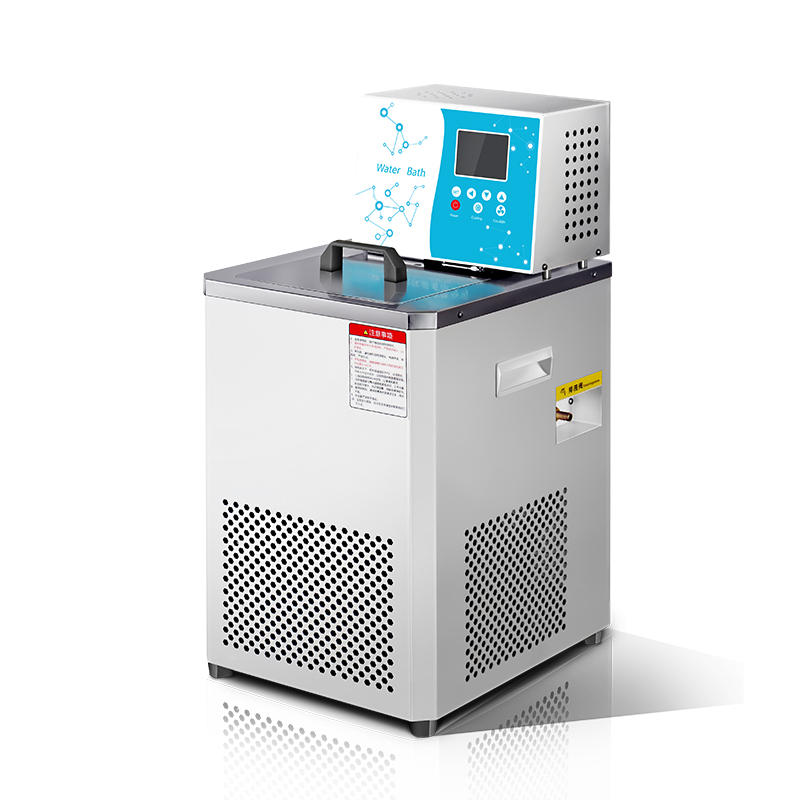

HST-DC-II High and low temperature integrated constant temperature bath
Widely used in universities, colleges, and enterprises in the fields of biology, chemical engineering, chemistry, pharmaceuticals, life sciences, and physical property testing.
Standards:
Request A Quote Files DownloadProduct Introduction
Widely used in universities, colleges, and enterprises in the fields of biology, chemical engineering, chemistry, pharmaceuticals, life sciences, and physical property testing. It provides users with a controlled, uniform, and constant temperature source for conducting constant temperature experiments or tests on experimental samples or manufactured products. It can also serve as a direct heating or cooling, or auxiliary heating or cooling heat source or cold source.
Product Features
● Latest independently developed temperature control technology, equipped with a high-standard PT100 and all imported electronic components.
● The software system can correct errors between the displayed temperature and the actual temperature, ensuring accurate temperature readings.
● Standard large-screen LCD display, providing a comprehensive view of multiple data points, with a temperature display resolution of up to 0.01℃.
● Over-temperature protection and over-temperature alarm; the over-temperature alarm temperature can be set, and the load can be automatically cut off when the temperature exceeds the limit.
● Timer function; the total operating time of the equipment can be set, and the load will be automatically cut off after the set time.
● Concealed cooling coil design ensures more usable space within the tank.
● Intelligent software ensures strong temperature stability. PID control automatically adjusts parameters to the optimal level for different media, and users can also manually readjust parameters.
● Software digital locking controls all system settings to prevent unauthorized operation and ensure accurate experimental data.
● High-efficiency, fully enclosed compressor cooling provides rapid cooling and multiple protections against overheating and overcurrent.
● Standard internal and external circulation function. The external circulation inlet and outlet pipes have an outer diameter of 10mm, meeting various user needs in different scenarios.
● Non-standard customization is supported.
Optional Accessories:
● Liquid Level Protection System – Forces load shutdown when the liquid level exceeds the limit, protecting users' experiments.
● RS485 Communication Interface – Connects to a computer or other host computer for device control and data viewing via software.
● Multi-Point Correction Function – Simultaneously corrects multiple temperature points to avoid temperature differences caused by sensor linearity errors.
● External PT100 – Enables precise temperature control for external circulation.
● Support – Allows different containers to be placed in the tank without being submerged in the constant-temperature liquid.
Technical Specifications:
Model
Temperature Range（℃）
Resolution
（℃）
Fluctuation（±℃）
External Dimensions
Power（kw）
Volume(L)
Slot Opening（mm）
Slot Depth（mm）
Pump flow
（L/min）
DC-0506-II
-5~160
0.01
0.1~0.2
320*370*675
0.8
6
180*160
150
6
DC-1006-II
-10~160
0.9
DC-2006-II
-20~160
1.0
DC-3006-II
-30~160
320*370*765
1.5
DC-4006-II
-40~160
400*450*940
2.1
DC-0510-II
-5~160
320*370*765
1.3
10
180*160
200
6
DC-1010-II
-10~160
1.5
DC-2010-II
-20~160
1.8
DC-3010-II
-30~160
400*450*940
2.0
DC-4010-II
-40~160
2.1
DC-0515-II
-5~160
320*370*765
2.1
15
250*160
200
6
DC-1015-II
-10~160
2.2
DC-2015-II
-20~160
2.3
DC-3015-II
-30~160
400*450*940
2.4
DC-4015-II
-40~160
450*540*990
2.5
DC-0520-II
-5~160
400*450*1040
2.3
20
250*160
300
6
DC-1020-II
-10~160
2.4
DC-2020-II
-20~160
2.5
DC-3020-II
-30~160
2.6
DC-4020-II
-40~160
450*540*1090
2.7
DC-0530-II
-5~160
450*540*990
2.5
30
330*280
230
13
DC-1030-II
-10~160
2.6
DC-2030-II
-20~160
2.7
DC-3030-II
-30~160
2.7
DC-4030-II
-40~160
450*540*1090
3.0
|
Model |
Temperature Range（℃） |
Resolution （℃） |
Fluctuation（±℃） |
External Dimensions |
Power（kw） |
Volume(L) |
Slot Opening（mm） |
Slot Depth（mm） |
Circulation Method |
|
DC0506-IIX |
-5~220 |
0.01 |
0.1~0.2 |
320*370*675 |
0.8 |
6
|
180*160 |
150 |
Internal circulation
|
|
DC1006-IIX |
-10~220 |
0.9 |
|||||||
|
DC2006-IIX |
-20~220 |
1.0 |
|||||||
|
DC3006-IIX |
-30~220 |
320*370*765 |
1.5 |
||||||
|
DC4006-IIX |
-40~220 |
400*450*940 |
2.1 |
||||||
|
DC0510-IIX |
-5~220 |
320*370*765 |
1.3 |
10
|
180*160 |
200 |
|||
|
DC1010-IIX |
-10~220 |
1.5 |
|||||||
|
DC2010-IIX |
-20~220 |
1.8 |
|||||||
|
DC3010-IIX |
-30~220 |
400*450*940 |
2.0 |
||||||
|
DC4010-IIX |
-40~220 |
2.1 |
|||||||
|
DC0515-IIX |
-5~220 |
320*370*765 |
2.1 |
15
|
250*160 |
200 |
|||
|
DC1015-IIX |
-10~220 |
2.2 |
|||||||
|
DC2015-IIX |
-20~220 |
2.3 |
|||||||
|
DC3015-IIX |
-30~220 |
400*450*940 |
2.4 |
||||||
|
DC4015-IIX |
-40~220 |
450*540*990 |
2.5 |
||||||
|
DC0520-IIX |
-5~220 |
400*450*1040 |
2.3 |
20
|
250*160 |
300 |
|||
|
DC1020-IIX |
-10~220 |
2.4 |
|||||||
|
DC2020-IIX |
-20~220 |
2.5 |
|||||||
|
DC3020-IIX |
-30~220 |
2.6 |
|||||||
|
DC4020-IIX |
-40~220 |
450*540*1090 |
2.7 |
||||||
|
DC0530-IIX |
-5~220 |
450*540*990 |
2.5 |
30
|
330*280 |
230 |
|||
|
DC1030-IIX |
-10~220 |
2.6 |
|||||||
|
DC2030-IIX |
-20~220 |
2.7 |
|||||||
|
DC3030-IIX |
-30~220 |
2.7 |
|||||||
|
DC4030-IIX |
-40~220 |
450*540*1090 |
3.0 |
