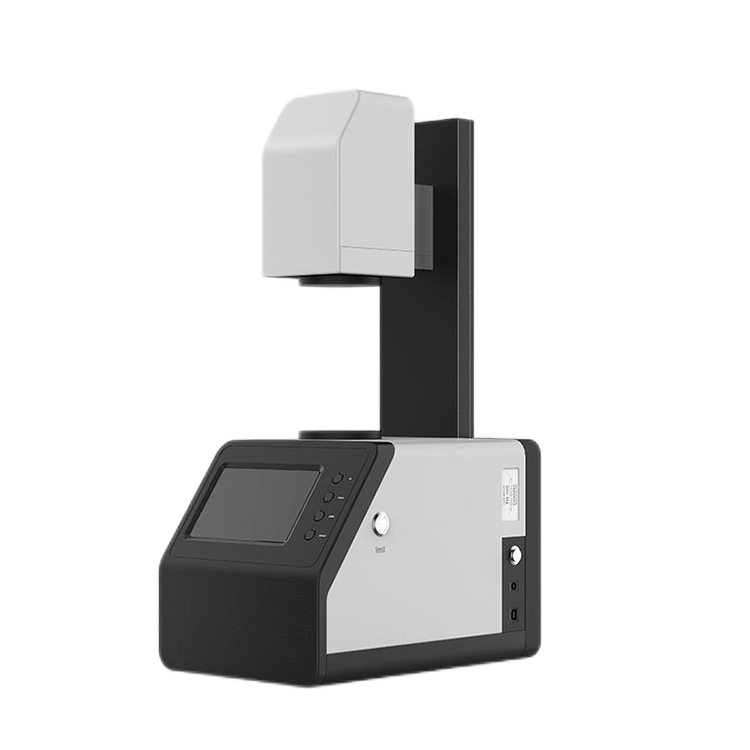

HST-TH Series Haze Meter
Instrument Advantages
1). It conforms to international standards GB/T 2410, ASTM D1003/D1044 and with a calibration certification from a third party laboratory.
2). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.
3). Three kinds of illuminants A,C and D65 for haze and total transmittance measurement.
4). 21mm test aperture.
5). Open measurement area, no limit on sample size.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.
7). It adopts LED light source whose lifetime can reach 10 years.
Standard:
GB/T 2410,ASTM D1003/D1044, ISO13468/ISO14782,
Technical Data
|
Model |
HST-TH09 |
HST-TH100 |
HST-TH110 |
|
Characteristic |
The instrument can easily realize ASTM standard fog measurement (ASTM D1003/D1044), transmittance measurement. |
To measure instrument can easily implement under the double standard fog (ASTM D1003 / D1044, IS013468 / IS014782), light transmittance measurement. |
|
|
Execution standard |
Single standard(ASTM) |
Double Standards(ASTM/ISO) |
|
|
Repeatability of haze |
≦0.1 |
≦0.08 |
≦0.05 |
|
Test Parameter |
ASTM (HAZE),Transmittance(T) |
||
|
Test Aperture |
Single aperture:21mm |
Double:21mm/7mm |
|
|
Instrument Screen |
5 inches color LCD screen |
7 inches color touch screen |
|
|
Geometry |
Transmittance 0/D (0 degree illumination, diffused receiving) |
||
|
Integrating Sphere Size |
Φ154mm |
||
|
Light Source |
D65/A.C |
||
|
Test Range |
0-100% |
||
|
Haze Resolution |
0.01 unit |
||
|
Transmittance Resolution |
0.01 unit |
||
|
Sample Size |
Open space, no size limit |
||
|
Data Storage |
10,000 pcs of samples |
20000 |
No limit |
|
Interface |
USB |
|
|
|
Power Supply |
DC12V (110-240V) |
||
|
Working Temperature |
+10 – 40 °C (+50 – 104 °F) |
||
|
Storage Temperature |
0 – 50 °C (+32 – 122 °F) |
||
|
Instrument Size |
L x W x H: 310mmX215mmX540mm |
||
