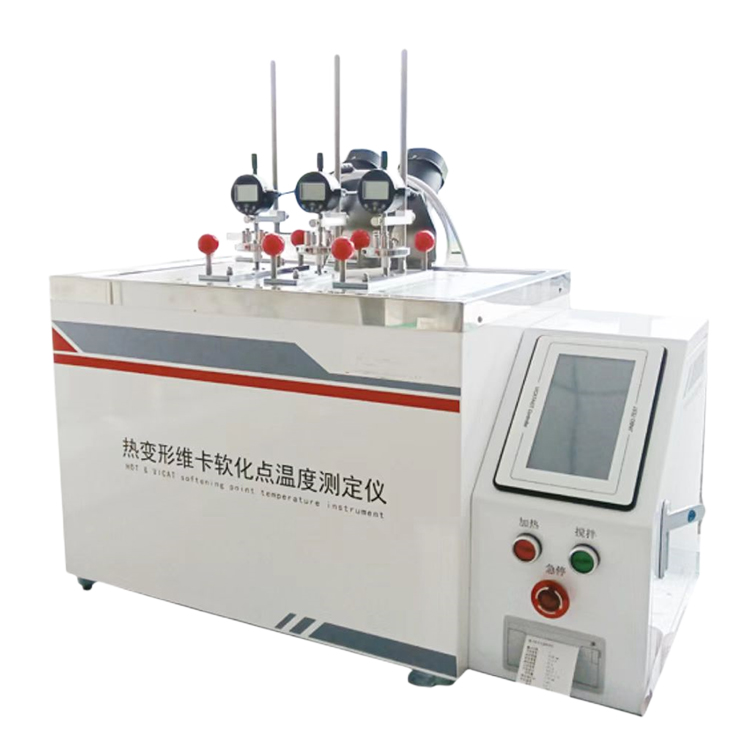

HST-HDTV3003T HDT Vicat Softening Temperature Tester
Application:
Plastics HDT Vicat Softening Temperature Test Point Tester is used to determine the heat distortion temperature (HDT) and Vicat softening point of plastic materials. It is widely suitable for plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting lamination materials and other non-metallic materials.
Standard:
GB / T1633 "Determination of Vicat Softening Temperature (VST) of Thermoplastics"
GB / T1634 "Determination of Plastic Load Deformation Temperature Part 1: General Test Method"
GB / T8802 "Determination of softening temperature of plastic pipe fittings"
IS075-2013 "Determination of Plastic Load Deformation Temperature"
ASTM D 648 "Test Method for Thermal Deformation Temperature of Plastics"
ASTM D 1525 "Test Method for Vicat Softening Temperature of Plastics"
Specification
|
Model |
HST-HDTV3003ST |
|
Structure |
Table type |
|
Display |
7 inch Touch Screen |
|
Sample Frame |
Manual |
|
Temperature range |
RT~300℃ |
|
Heating speed |
120℃/h [(12±1)℃/6min],50℃/h [(5±0.5)℃/6min] |
|
Max. temperature error |
±0.5℃ |
|
Maximum deformation measurement range |
1mm (Vicat test); 0.33 mm (thermal deformation) |
|
Heating medium |
methyl silicone oil (below 200 centistokes) |
|
Maximum heating power |
3kw |
|
Working position |
3 (4 or 6 optional) |
|
Cooling method |
natural cooling |
|
Three methods of load deformation temperature |
Method A: 1.80MPa bending stress, Method B: 0.45MPa bending stress, Method C:8.00MPa bending stress |
|
Mass of load bar and pallet |
68g+1g |
|
Power supply |
AC220V, 10A, 50Hz |
