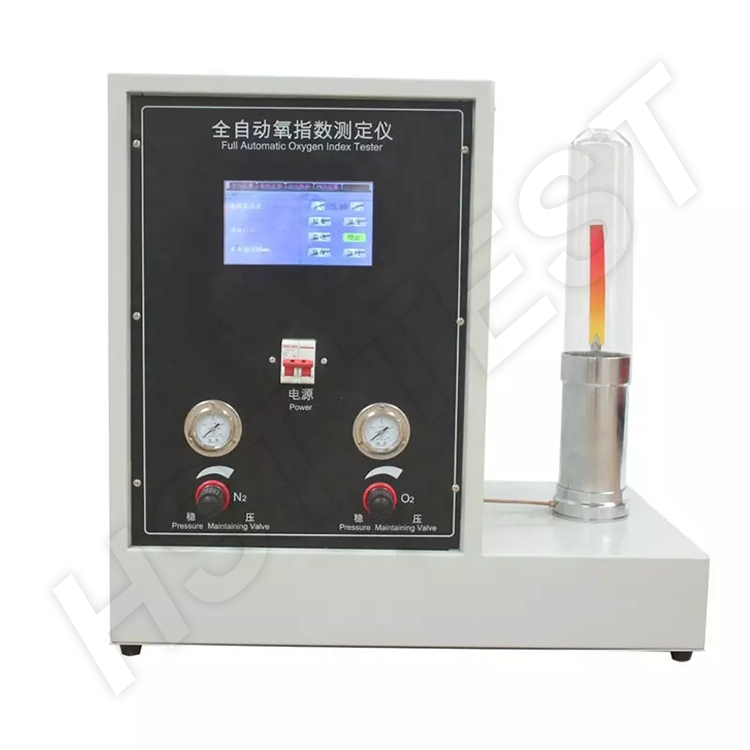

HST-304H Oxygen Index Test Apparatus
Application:
It is used to judge the difficulty of burning when the material is in contact with flame in the air. It is suitable for homogeneous solid materials, laminated materials, soft sheets and film materials.
Standards:
Comply with GB/T2406 "Plastic Flammability Test Method-Oxygen Index Method" and JIS7201, BS2782, ANSI/ASTM, D2863, ISO4589, test standards.
Technical parameters:
|
Name |
Digital Limiting Oxygen Index Tester / Oxygen Index Testing Equipment |
|
Temperature |
Room temperature~40 degree centigrade |
|
Relative humidity |
≤70% |
|
Power |
220V±10 |
|
The maximum power |
0.5 KW |
|
Gas source |
Industrial nitrogen,oxygen purity>99% |
|
Input pressure |
0.25~0.5 Mpa |
|
Working pressure |
0.1~0.2 Mpa |
|
Precision regulators |
≤0.001 Mpa/min |
|
Response time |
<5s |
|
Digital resolution |
±0.1% |
|
Accuracy |
0.2 class |
|
Accesorries |
|
|
Annex 1 sets of random |
|
|
Test Equipment dimensions |
0.54 ×0.33×0.6 (L*W*H)m |
|
Equipment use area |
0.6 Square meters |
|
Weight of test equipemnt |
24 Kg |
