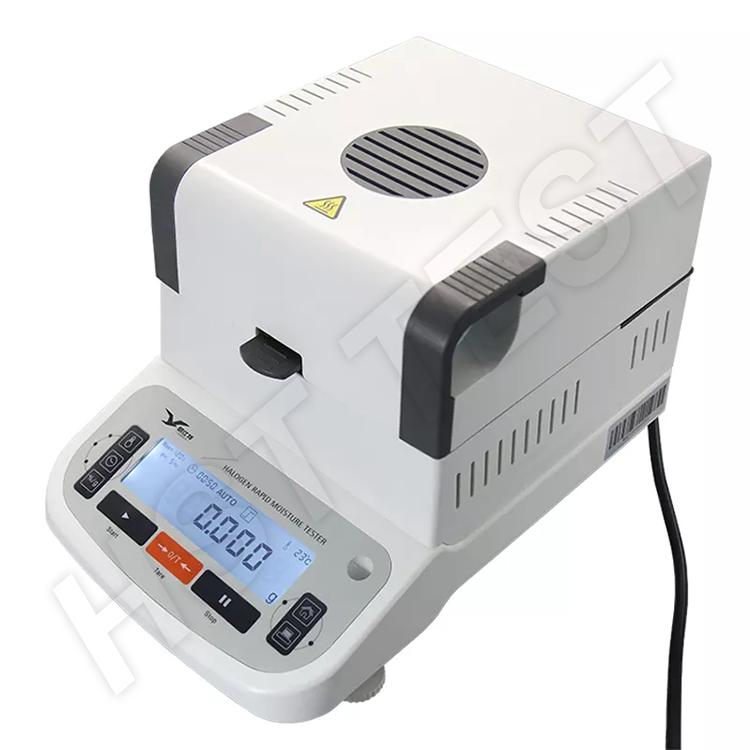

HST-100 Series Plastic Moisture Meter

HST-100 Series Plastic Moisture Meter
HST-100 Series Plastic Moisture Meter
HST-100 Series Plastic Moisture Meter

Product introduction

This series rapid moisture analyzer is equipped with a high-efficiency halogen lamp heating device on the basis of a precision electromagnetic force weighing sensor to achieve rapid and accurate moisture determination. This durable and affordable moisture analyzer benefits from rich experience in precision instrument development, design, and manufacturing, as well as years of moisture measurement expertise. Suitable for research institutes, universities, inspection institutes, metrology institutes, enterprises and institutions, widely used in various industries such as plastic, grain, feed, powder, tobacco, paper, food (dehydrated vegetables, meat, noodles, flour, biscuits, pies) , Aquatic processing), tea, beverages, grains, chemical raw materials, pharmaceuticals, textile raw materials, etc., test the free ion water contained in the samples.

Model HST-105A HST-101A HST-100A
Weighing Accuracy 0.005g 0.001g 0.0001g
Load cell Strain sensor Electromagnetic force sensor
Moisture readability 0.01MC 0.01MC 0.001MC
Solid content moisture readability 0.01% 0.01% 0.001%
Moisture Range 0.01%-100% 0.01%-100% 0.001%-100%
Solid content range 100%-0.01% 100%-0.01% 100%-0.001%
Heating temperature range 40℃~160℃ 40℃~160℃ 40℃~200℃
Principle Thermal weight loss
Weighing Range 120g
Calibration Method External weight calibration (100g weight)
Heating Method Ring halogen lamp heating
Heating Power 500W
Temperature readability 1℃
Temperature Sensor High-precision ultra-fine platinum and rhodium temperature sensor
Display Mode Moisture content, solid content, drying rate, weight after drying, moisture regain, real-time temperature, graph
Shutdown Mode Automatic, timing, manual
Time Setting 0~99 minutes (1 minute interval)
Sample Pan Ø102mm stainless steel
Communication Interface Thermal printing (directly print out the moisture value and solid content)
Standard RS232 communication interface, which can be connected to PC, printer and other peripheral equipment
Voltage 220V, 50Hz / 110V, 60Hz
Size 310*200*205mm
Weight 3.5kg 4.3kg 4.3kg
