Instruction:

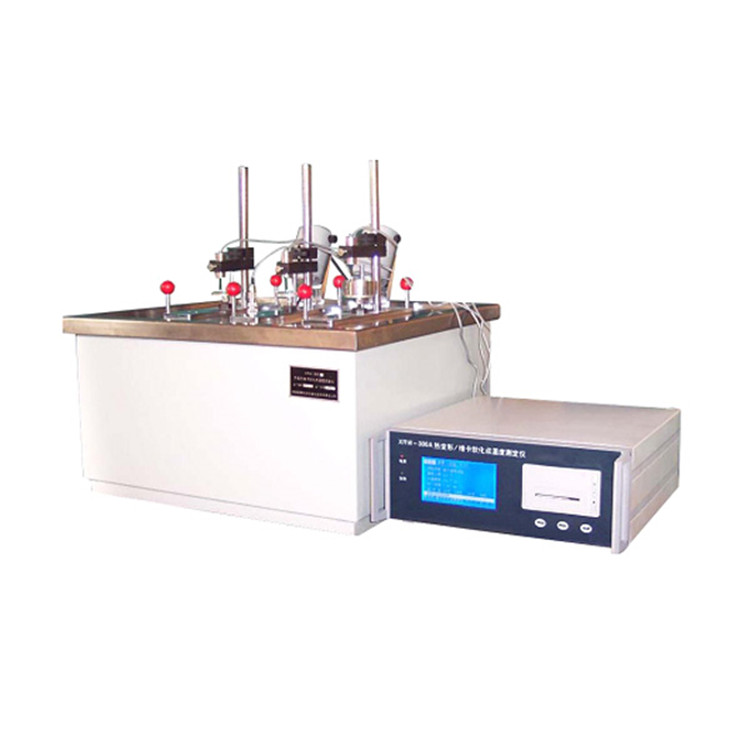

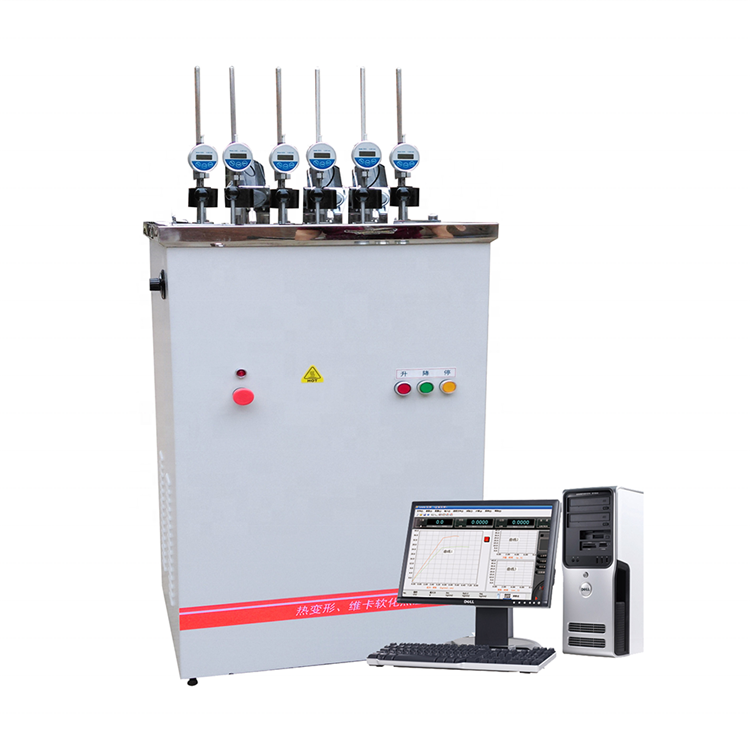

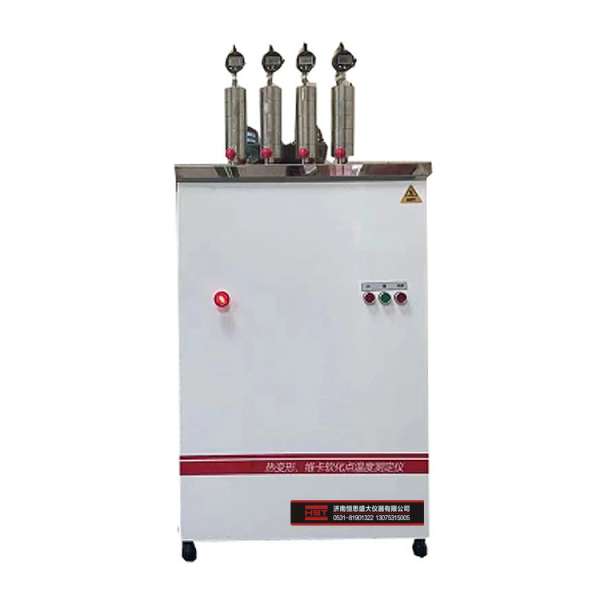

The tester used to measure plastic, rubber, nylon, cable … macro molecule material thermal deformation temperature and vi cat softening temperature, the main sensor, element with high-quality, high reliability, security, the sample frame has the function of automatic up and down, simultaneity equip power test software system function mightiness, is a suit of special software of thermal deformation temperature, vi cat softening point temperature test.
Specification:
Model |
HXWB-300AT-3 |
Structure |
Table type |
Temperature control range |
room temperature—300°C |
Temperature rise speed |
(120±10)°C/h (12±1°C/6min); (50±5)°C/h(5±0.5°C/6min) |
Temperature accuracy |
±0.5 °C (50 degree heating rate) ±1 °C (120 degree heating rate) |
Temperature measurement point |
1 |
Maximum deformation error |
0.1°C |
deformation range |
0~10mm |
Maximum deformation error |
±0.01mm |
Sample support span |
64mm、100mm |
Number of test racks |
3 |
Range of load |
0.75N—50N |
Test space |
60—120 mm (Adjustable continuously ) |
Display |
LCD display |
Using media |
Methyl silicone oil or transformer oil |
