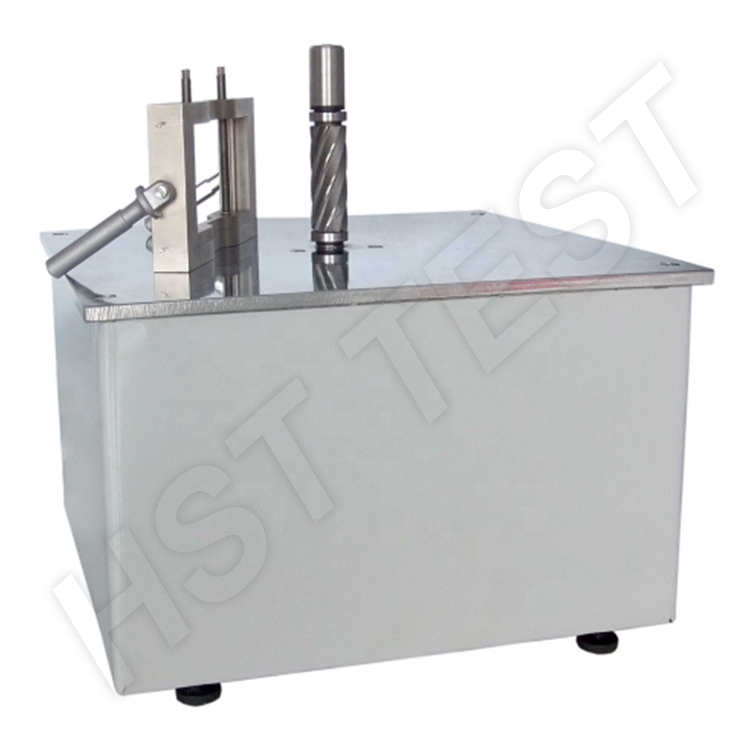

HST5012 Electric Dumbbell Sample Cutting Machine
1. Application
The machine shall be suitable for the preparation of dumbbell-type tensile specimens and Vicat thermal deformation specimens of various non-metallic pipes or plates.
2. Standard
ASTM D638-14 Standard Test Method for Tensile Properties of Plastics
3.Technical Parameters
|
Model |
HST5012 |
|
Milling cutter diameter |
12,20 70mm |
|
Milling cutter speed |
2900r/min |
|
Work surface size |
400mm*400mm |
|
Sample thickness |
1～70mm |
|
Weight |
85Kg |
|
Voltage |
AC 380V+10%，50Hz |
|
Power |
370W |
