Product description:

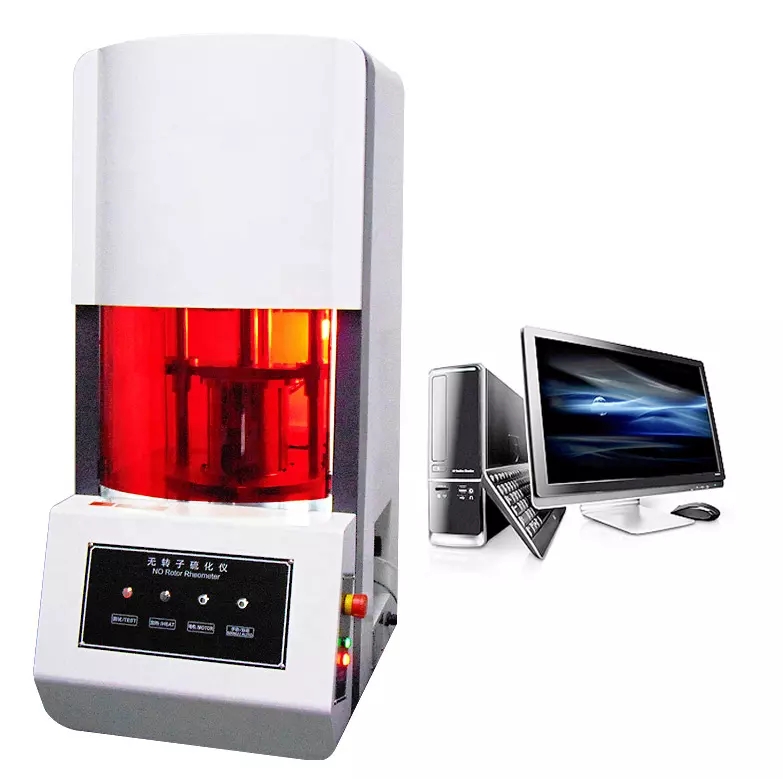

Rotorless Rheometer is used to determine the vulcanization characteristics of a rubber compound. It can dynamically display temperature curve and curve of shear modulus- vulcanization time under set temperature and pressure. It consists of main machine, temperature determination and control system, sensor, computer, data collector, printer and electrical components. It completely conforms to ASTM D5289, ISO 6502, GB/T 16584, etc.
Specifications:
Model |
HST-200 |
Temperature range |
RT~200℃ |
Temperature accuracy |
≤±0.3℃ |
Test range |
0~200 Mooney value |
Calibration accuracy |
100±0.5 Mooney value |
Rotor speed |
2±0.02r/min |
Measuring time |
Scorch: 0~200min |
Test pressure |
11.5KN ±0.5KN |
Air source |
0.45~0.6MPa |
Power supply |
AC220V 50Hz |
